Part WB21X36771 Range Surface Burner Infinite Heat Switch Kit

Purpose

Regulates power and controls temperature for electric cooktop burners.

Details

The WB21X36771 is a genuine OEM infinite heat switch kit engineered for electric ranges and cooktops utilizing coil burner elements. This switch acts as the internal thermostat for the surface element, cycling electrical power on and off to maintain the exact cooking temperature selected on the dial. When this switch degrades or experiences internal electrical failure, common symptoms include a burner that remains stuck on maximum high heat regardless of the setting, a burner that fails to heat at all, or erratic heating responses during use. Replacing the switch resolves these hazardous conditions and restores variable, precise heat adjustments from a low simmer to a rapid boil.

Included Items

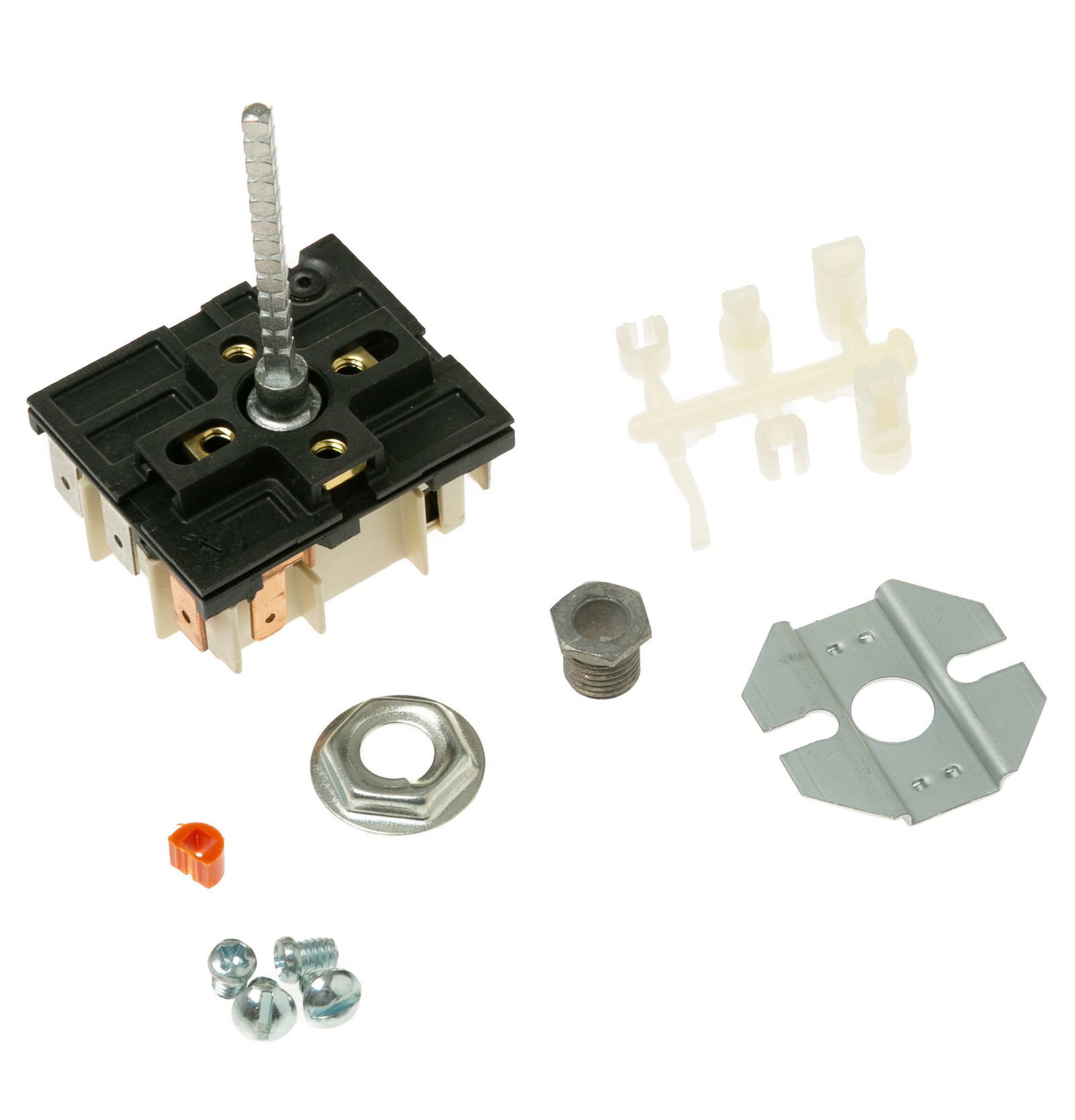

Infinite heat switch body, universal break-off shafts, plastic dial adapters, and installation hardware. Required tools: Phillips screwdriver, flathead screwdriver, and two pairs of pliers (for snapping the shaft to correct length).

Compatible Brands

GE, General Electric, Hotpoint, Kenmore, RCA, Sears.

Replaces

301441, 301442, 301666, 301667, 301816, 301817, 301818, 301819, 301820, 304149, 305109, 305110, 305111, 305112, 306224, 306382, 306383, 307014, 307016, 315604, 315605, 315606, 320945, 320946, 320947, 320948, 320949, 321827, 324608, 324609, 330687, 334886, 334887, 334888, 334889, 334890, 334975, 335804, 336119, 336120, 339418, 339419, 342188, 342189, 342192, 342193, 342194, 342195, 342196, 344552, 344553, 345559, 8004908, WB02X5212, WB21X0181, WB21X0183, WB21X0185, WB21X0186, WB21X0189, WB21X0190, WB21X0209, WB21X0210, WB21X0211, WB21X0222, WB21X0226, WB21X0227, WB21X0228, WB21X0229, WB21X0230, WB21X0233, WB21X0237, WB21X0238, WB21X0239, WB21X0240, WB21X0241, WB21X0242, WB21X0244, WB21X0245, WB21X181, WB21X183, WB21X185, WB21X186, WB21X189, WB21X190, WB21X209, WB21X210, WB21X211, WB21X222, WB21X226, WB21X227, WB21X228, WB21X229, WB21X230, WB21X233, WB21X237, WB21X238, WB21X239, WB21X240, WB21X241, WB21X242, WB21X244, WB21X245, WB21X5006, WB21X5007, WB21X5012, WB21X5013, WB21X5017, WB21X5018, WB21X5020, WB21X5022, WB21X5023, WB21X5024, WB21X5025, WB21X5026, WB21X5027, WB21X5028, WB21X5030, WB21X5091, WB21X5092, WB21X5093, WB21X5094, WB21X5113, WB21X5127, WB21X5150, WB21X5151, WB21X5154, WB21X5166, WB21X5167, WB21X5168, WB21X5169, WB21X5197, WB21X5198, WB21X5199, WB21X5200, WB21X5201, WB21X5202, WB21X5203, WB21X5204, WB21X5205, WB21X5206, WB21X5213, WB21X5214, WB21X5217, WB21X5217R, WB21X5218, WB21X5219, WB21X5225, WB21X5243R, WB21X5244, WB21X5245, WB21X5246, WB21X5247, WB21X5353, WB23K5028, WB23K5030, WB23K5038, WB23M0014, WB23M0015, WB23M14, WB23M15, WB23X0084, WB23X0085, WB23X0086, WB23X0087, WB23X0088, WB23X0089, WB23X0093, WB23X0094, WB23X5092, WB23X5099, WB23X84, WB23X85, WB23X86, WB23X87, WB23X88, WB23X89, WB23X93, WB23X94, WB24X5281, WB24X5315, WB24X5333, WB24X5334, WB2X5212, WB30M0005, WB30M5, WB32X5095, AP6988477, PS16216966.

Highlights

• Genuine OEM part
• Application: Electric range and cooktop heating control system
• Purpose: Manages variable power cycles to electric surface elements
• Dimensions: Packaged approximately 6.14" x 5.55" x 2.36"
• Installation difficulty: Moderate

Safety Note

Always disconnect power before servicing. Follow model-specific diagrams and safety instructions for installation.
