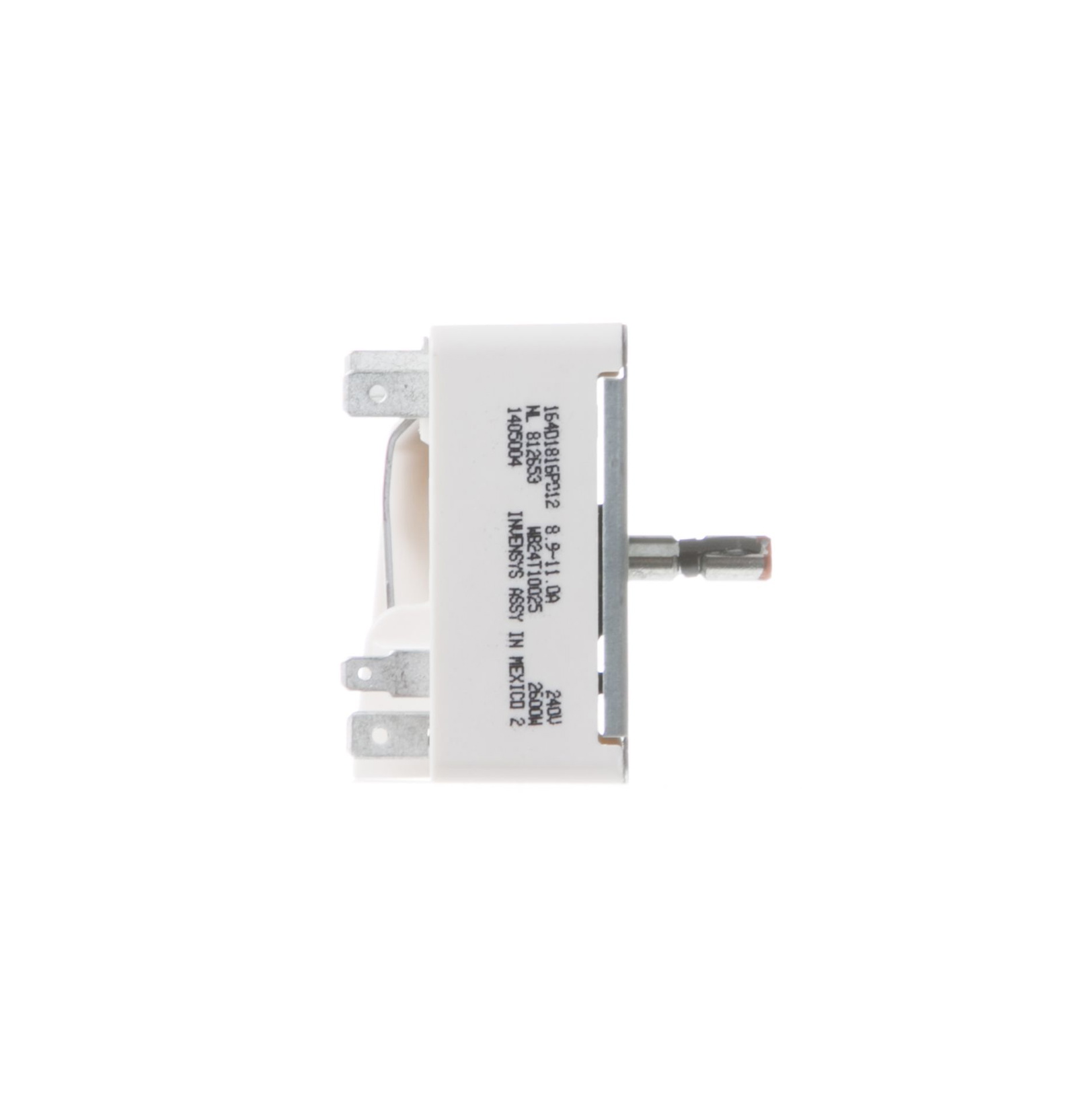

Part WB24T10029 Infinite Switch
Purpose
Control heat level of surface burner
Details
This infinite switch regulates the electrical power sent to a surface heating element on compatible ranges. If this switch fails, the burner may not heat properly, may have no temperature control, or may not shut off. Replacing the switch restores proper control of the surface element and helps maintain safe, consistent cooking performance. Compatibility varies by model; confirm with your model’s diagram.
Included Items
One (1) infinite surface burner switch assembly only (mounting hardware not included unless specified by supplier).
Compatible Brands
GE Appliances, Hotpoint, Kenmore
Replaces
OEM part number WB24T10029. Also referenced as 164D1816P008, 769696, AH236754, AP2024076, PS236754.
Highlights
- Genuine OEM part
- Application: Electric range surface burner control
- Purpose: Provide adjustable heat regulation for a 6″ (approx.) surface element
- Electrical rating: 240 V, 4.4-7.4 A, approx. 1560 W
- Installation difficulty: Moderate (requires removing the range top and disconnecting power)
Safety Note
Always disconnect the appliance from power at the breaker or unplug before servicing. Follow your model’s specific wiring diagram and installation instructions to ensure safe and proper replacement. Do not substitute if terminals or physical mounting differ.
