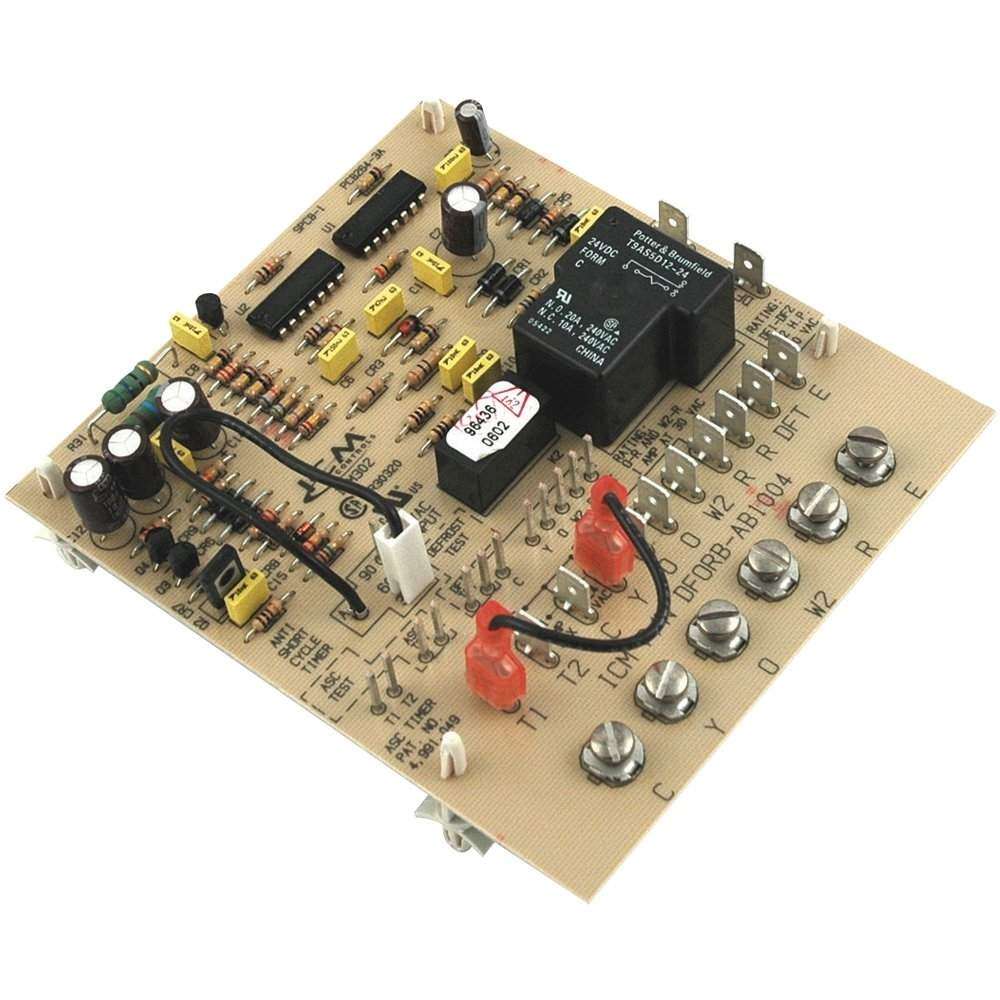

ICM Defrost Control For ICM302

ICM Defrost Control For ICM302
Fast Delivery Service Graphic
Availability: Out of stock
Current Stocking Number: ICM302~a
Part Number: ICM302
Designed for: ICM Controls
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$87.66
$53.03

Defrost Control - replacement for Nordyne 621301A, 621579B, 621579C and 917178 controls

DETAILS:

* Low cost, time and temperature defrost* Time and temperature terminate* Test pins reduce test time by 256X* Strip heat, reversing valve outputs* High power output (1 HP fan @ 240 VAC)* Integral short cycle protection

SPECIFICATIONS:

Voltage: 18 to 30 VAC
Frequency: 50/60 Hz
Output:
- Relay, SPST
- N.O.: 1 amp
Anti-Short Cycle Time: 5 minutes
Defrost Time: Fixed 10 minutes
Interval Time Between Defrosts: Pin-selectable 30/60/90 min

Defrost Control - replacement for Nordyne 621301A, 621579B, 621579C and 917178 controls

DETAILS:

* Low cost, time and temperature defrost* Time and temperature terminate* Test pins reduce test time by 256X* Strip heat, reversing valve outputs* High power output (1 HP fan @ 240 VAC)* Integral short cycle protection

SPECIFICATIONS:

Voltage: 18 to 30 VAC
Frequency: 50/60 Hz
Output:
- Relay, SPST
- N.O.: 1 amp
Anti-Short Cycle Time: 5 minutes
Defrost Time: Fixed 10 minutes
Interval Time Between Defrosts: Pin-selectable 30/60/90 min
Products specifications
Attribute nameAttribute value
ConditionNew
