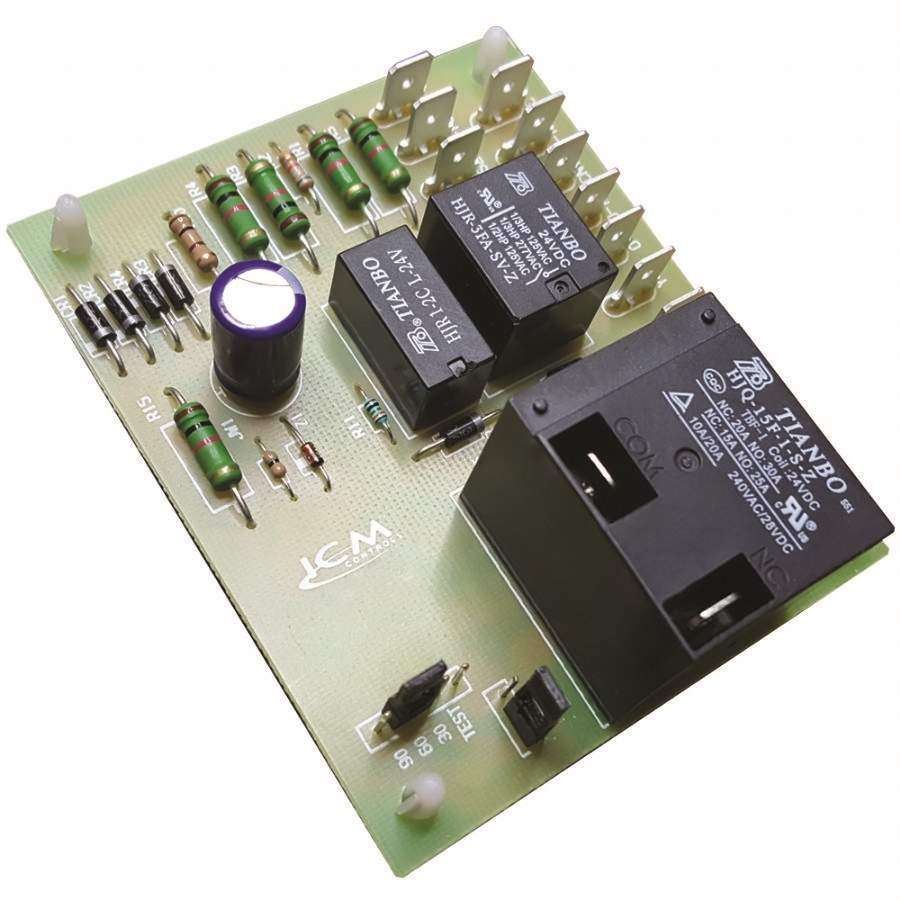

ICM Defrost Control For ICM314

ICM Defrost Control For ICM314
Fast Delivery Service Graphic
Availability: Out of stock
Current Stocking Number: ICM314~a
Part Number: ICM314C
Designed for: ICM Controls
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$9.30
$2.14

Defrost Control - replacement for Goodman PCBDM133 controls

DETAILS:

* Replacement for Goodman PCBDM133* Low cost time and temperature terminated defrost*Test pins reduce test time by 240X* Pressure switch bypass* High power output contact (5.6 Amp @ 240 VAC)* Strip heat, reversing valve outputs (24 VAC, 1 amp)*Anti- Bang feature when entering and exiting defrost mode*User selectable compressor delay mode*Integral short cycle protection*LEAD FREE

SPECIFICATIONS:

Voltage: 18-30 VAC
Frequency: 50/60 Hz
Outdoor Fan Relay Output: 5.6 Amps @ 240 VAC
Strip Heat, Reversing Valve Outputs: 24 Vac, 1 amp
Defrost Time: Fixed 10 minutes
Interval Time Between Defrosts: Pin-selectable 30/60/90 min: LEAD FREE

Defrost Control - replacement for Goodman PCBDM133 controls

DETAILS:

* Replacement for Goodman PCBDM133* Low cost time and temperature terminated defrost*Test pins reduce test time by 240X* Pressure switch bypass* High power output contact (5.6 Amp @ 240 VAC)* Strip heat, reversing valve outputs (24 VAC, 1 amp)*Anti- Bang feature when entering and exiting defrost mode*User selectable compressor delay mode*Integral short cycle protection*LEAD FREE

SPECIFICATIONS:

Voltage: 18-30 VAC
Frequency: 50/60 Hz
Outdoor Fan Relay Output: 5.6 Amps @ 240 VAC
Strip Heat, Reversing Valve Outputs: 24 Vac, 1 amp
Defrost Time: Fixed 10 minutes
Interval Time Between Defrosts: Pin-selectable 30/60/90 min: LEAD FREE
Products specifications
Attribute nameAttribute value
ConditionNew
