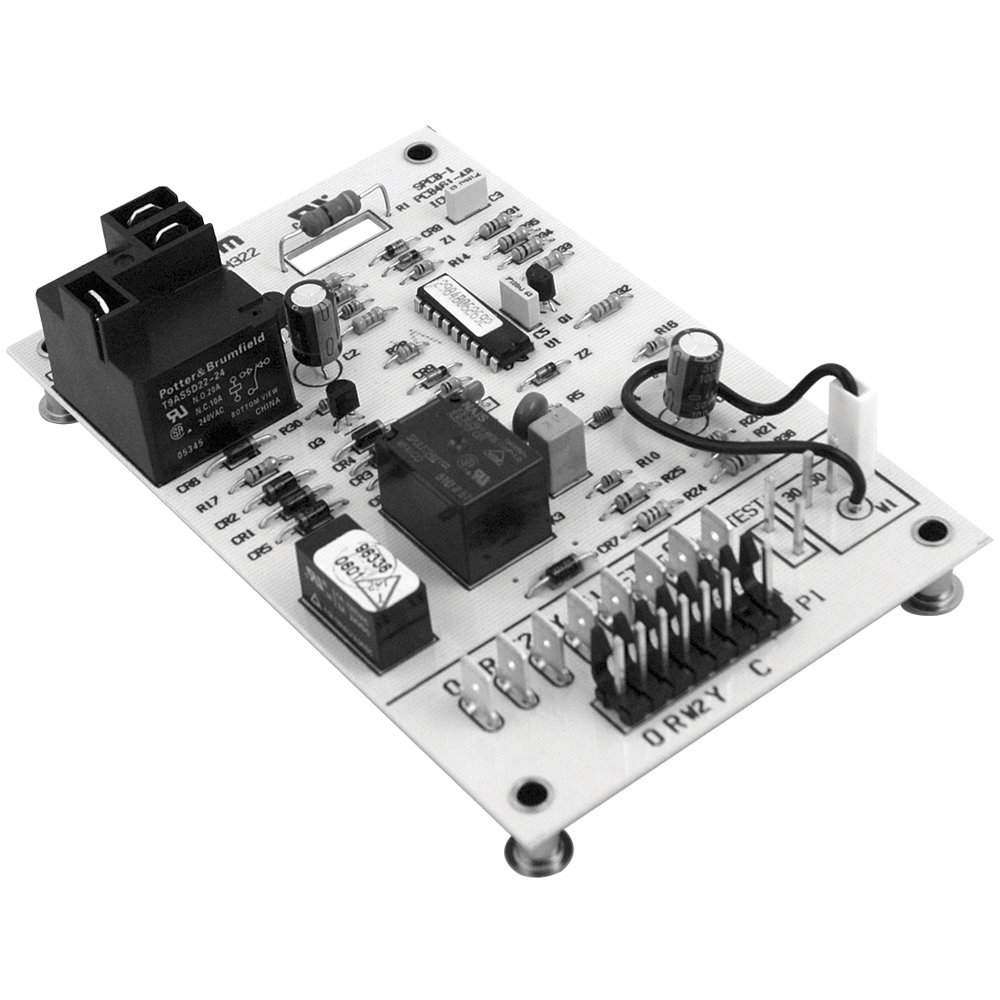

ICM Defrost Control For ICM322

ICM Defrost Control For ICM322
Fast Delivery Service Graphic
Availability: Out of stock
Current Stocking Number: ICM322~a
Part Number: ICM322
Designed for: ICM Controls
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$77.79
$46.61
Defrost Control - replacement for Carrier CES0130024-00 controls

DETAILS:

* Low cost, time and temperature defrost* Time and temperature terminate* Test pins reduce test time by 256X* High power output, outdoor fan (1/2 HP fan @ 240 VAC)* Strip heat, reversing valve outputs (24 VAC, 1 amp)

SPECIFICATIONS:

Voltage: 18-30 VAC
Frequency: 50/60 Hz
Outdoor Fan Relay Output:
- N.O.: 20 amps
- N.C.: 10 amps
Defrost Time: Fixed 10 minutes
Interval Time Between Defrosts: Pin-selectable 30/50/90 min
Defrost Control - replacement for Carrier CES0130024-00 controls

DETAILS:

* Low cost, time and temperature defrost* Time and temperature terminate* Test pins reduce test time by 256X* High power output, outdoor fan (1/2 HP fan @ 240 VAC)* Strip heat, reversing valve outputs (24 VAC, 1 amp)

SPECIFICATIONS:

Voltage: 18-30 VAC
Frequency: 50/60 Hz
Outdoor Fan Relay Output:
- N.O.: 20 amps
- N.C.: 10 amps
Defrost Time: Fixed 10 minutes
Interval Time Between Defrosts: Pin-selectable 30/50/90 min
Products specifications
Attribute nameAttribute value
ConditionNew
