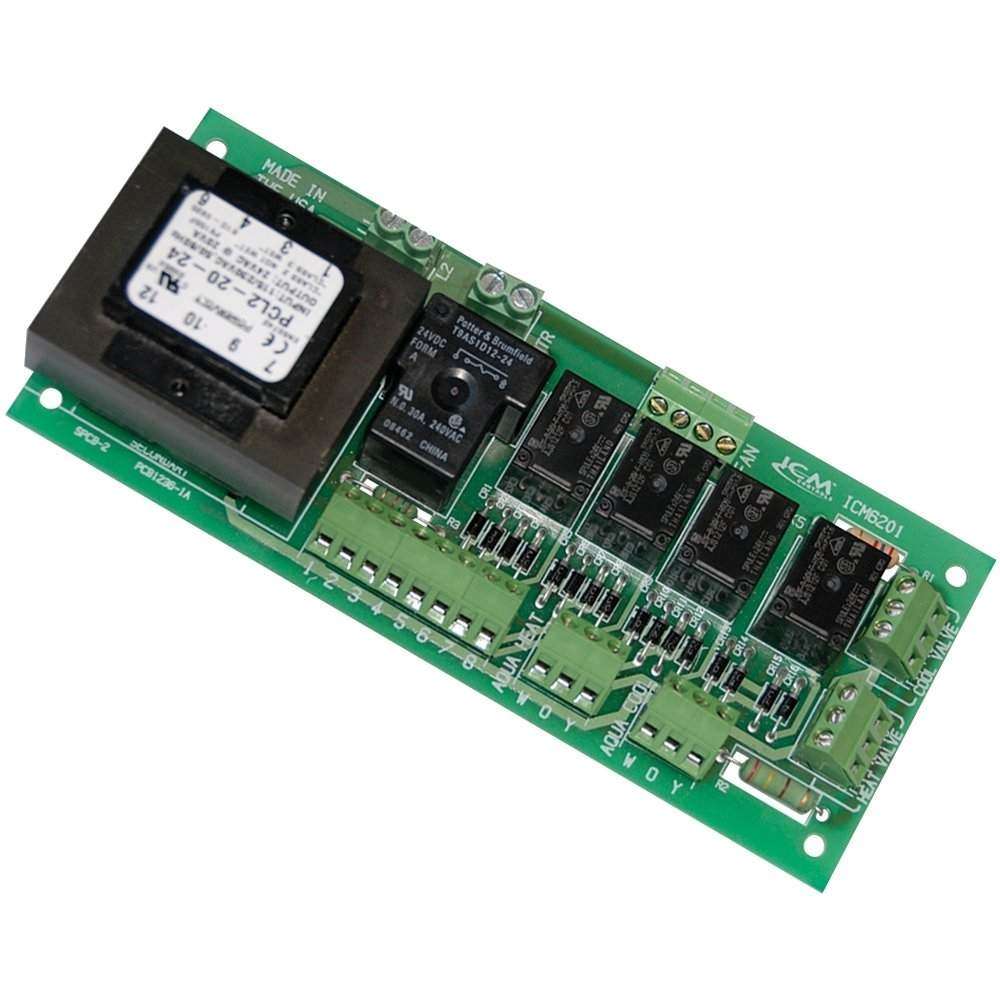

ICM Fan And Heat Control ICM6201

ICM Fan And Heat Control ICM6201
Fast Delivery Service Graphic
Availability: Out of stock
Current Stocking Number: ICM6201~a
Part Number: ICM6201
Manufacturer: ICM Controls
Be the first to review this product
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$111.01
$68.19
Prop 65 Warning

Fan coil and electric heat control center for operating line voltage, 3-speed fan motor with low voltage controls; For 2- or 4-pipe, aquastat auto-changeover, heat pump applications

DETAILS:

* Ability to operate line voltage, 3-speed fan motor with low voltage controls* Ability to operate line voltage electric heating element with low voltage controls* Compatible with 4-pipe, 2-pipe and heat pump* 20 VA 24 VAC power supply * Suitable for 1/8 HP motors* Screw terminal receptacles* Mounts with standard 3"" track * UL Recognized

SPECIFICATIONS:

Input:
- Transformer Primary (L1 & L2): 115 VAC, 50-60 Hz
- HI, MED, LOW (8, 7, 6): Nominal 17mA @ 24 VAC
- Inputs 1-5, Aqua Heat & Cool: 1.5A @ 24 VAC
Output:
- Transformer Secondary: 24 VAC; 20 VA
- Relay Outputs HI, MED, LOW: 1/8 HP @ 115 VAC; 10A @ 240 VAC resistive
- HTR Output: 30A @ 240 VAC resistive
- Heat & Cool Valves: 1.5A @ 24 VAC

Fan coil and electric heat control center for operating line voltage, 3-speed fan motor with low voltage controls; For 2- or 4-pipe, aquastat auto-changeover, heat pump applications

DETAILS:

* Ability to operate line voltage, 3-speed fan motor with low voltage controls* Ability to operate line voltage electric heating element with low voltage controls* Compatible with 4-pipe, 2-pipe and heat pump* 20 VA 24 VAC power supply * Suitable for 1/8 HP motors* Screw terminal receptacles* Mounts with standard 3"" track * UL Recognized

SPECIFICATIONS:

Input:
- Transformer Primary (L1 & L2): 115 VAC, 50-60 Hz
- HI, MED, LOW (8, 7, 6): Nominal 17mA @ 24 VAC
- Inputs 1-5, Aqua Heat & Cool: 1.5A @ 24 VAC
Output:
- Transformer Secondary: 24 VAC; 20 VA
- Relay Outputs HI, MED, LOW: 1/8 HP @ 115 VAC; 10A @ 240 VAC resistive
- HTR Output: 30A @ 240 VAC resistive
- Heat & Cool Valves: 1.5A @ 24 VAC
Products specifications
Attribute nameAttribute value
ConditionNew
