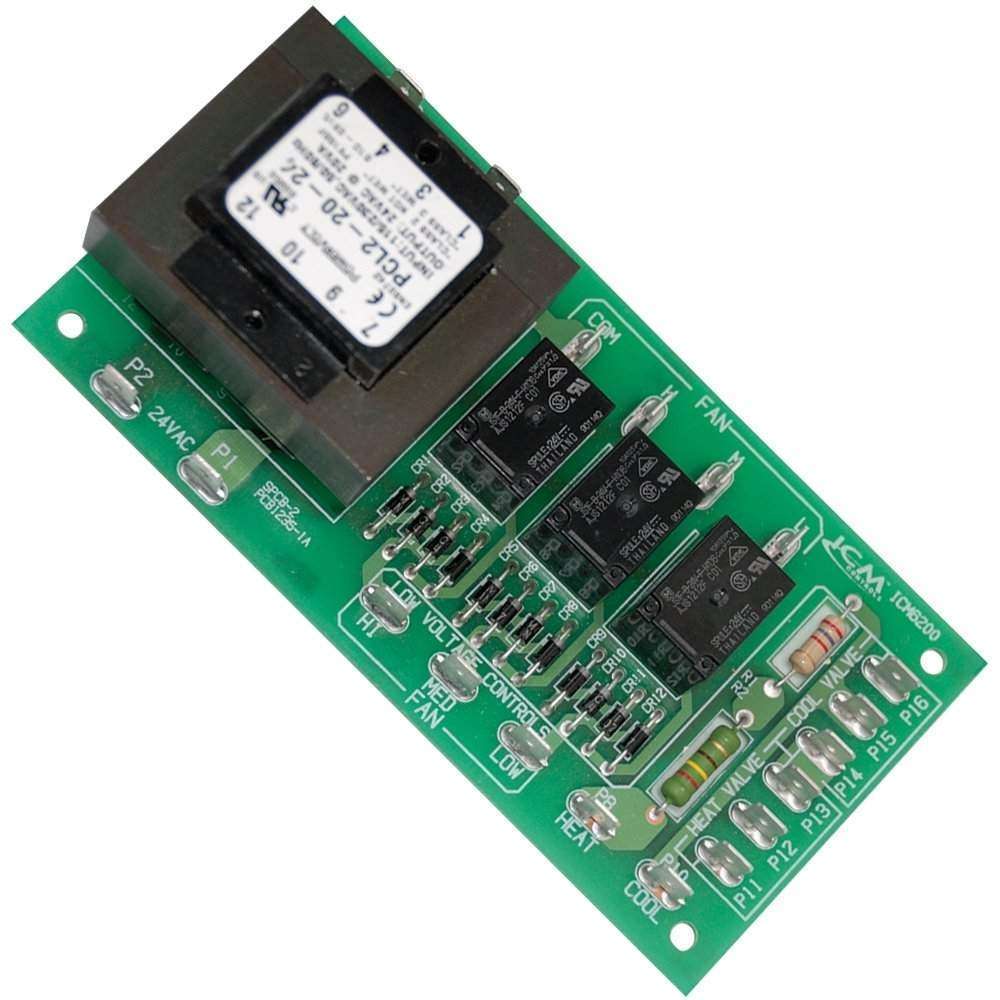

ICM Fan Relay Control ICM6200

ICM Fan Relay Control ICM6200
Fast Delivery Service Graphic
Availability: Out of stock
Current Stocking Number: ICM6200~a
Part Number: ICM6200
Designed for: ICM Controls
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$195.55
$123.09

Fan coil relay control center for operating line voltage, 3-speed fan motor with low voltage controls; For 2- or 4-pipe, heat pump, auto-changeover applications

DETAILS:

* Ability to operate line voltage, 3-speed fan motor with low voltage controls * Compatible with 4-pipe, 2-pipe, heat pump, auto changeover* 20 VA 24 VAC power supply * Suitable for 1/8 HP motors* 1/4"" quick connect terminal* Mounts with standard 3"" track * UL Recognized

SPECIFICATIONS:

Input:
- Transformer Primary: 115 VAC, 50-60 Hz
- Fan Inputs HI, MED, LOW: Nominal 17mA @ 24 VAC
- Heat & Cool: 1.5A @ 24 VAC
Output:
- Transformer Secondary: 24 VAC; 20 VA
- Relay Outputs HI, MED, LOW: 1/8 HP @ 115 VAC; 10A @ 240 VAC resistive max.
- Heat & Cool Valves: 1.5A @ 24 VAC

Fan coil relay control center for operating line voltage, 3-speed fan motor with low voltage controls; For 2- or 4-pipe, heat pump, auto-changeover applications

DETAILS:

* Ability to operate line voltage, 3-speed fan motor with low voltage controls * Compatible with 4-pipe, 2-pipe, heat pump, auto changeover* 20 VA 24 VAC power supply * Suitable for 1/8 HP motors* 1/4"" quick connect terminal* Mounts with standard 3"" track * UL Recognized

SPECIFICATIONS:

Input:
- Transformer Primary: 115 VAC, 50-60 Hz
- Fan Inputs HI, MED, LOW: Nominal 17mA @ 24 VAC
- Heat & Cool: 1.5A @ 24 VAC
Output:
- Transformer Secondary: 24 VAC; 20 VA
- Relay Outputs HI, MED, LOW: 1/8 HP @ 115 VAC; 10A @ 240 VAC resistive max.
- Heat & Cool Valves: 1.5A @ 24 VAC
Products specifications
Attribute nameAttribute value
ConditionNew
