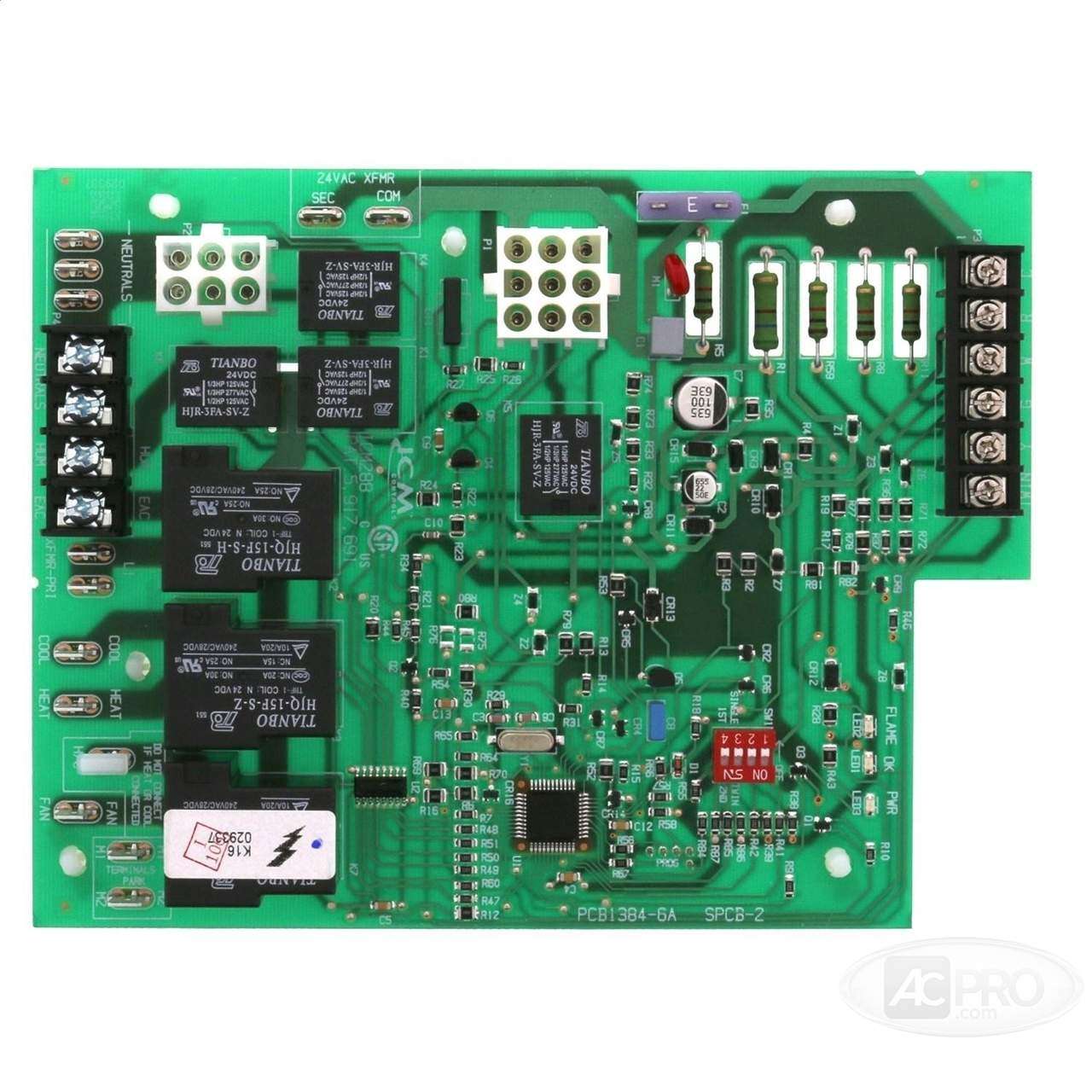

ICM Furnace Control For ICM289

ICM Furnace Control For ICM289
Fast Delivery Service Graphic
Availability: Out of stock
Current Stocking Number: ICM289~a
Part Number: ICM289
Designed for: ICM Controls
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$9.30
$2.14

Furnace Control – low cost replacement for Rheem 62-24084-82 control boards

DETAILS:

  • Low cost form, fit and functional replacement for Rheem 62-24084-82 circuit boards
  • Microprocessor-based design
  • Monitors pressure, roll-out and limit switches
  • Controls gas valve, inducer draft motor, circulating blower and hot surface ignitor
  • Reverse polarity detection
  • Twinning compatible with other ICM288 control boards
  • Diagnostic LEDs for testing/troubleshooting

SPECIFICATIONS:

Voltage Range: Line 98-132 VAC @ 60HZ
Ignitor: 5A, 120 VAC
Cool Blower: 10A, 2HP, 240 VAC
Heat: 5A, 1/2 HP, 250 VAC
Inducer Blower: 4A, 120 VAC
Gas Valve: 1A, 24 VAC
Humidifier Motor: 0.5A, 24 VAC
Electronic Air Cleaner: 1A, 120 VAC

Furnace Control – low cost replacement for Rheem 62-24084-82 control boards

DETAILS:

  • Low cost form, fit and functional replacement for Rheem 62-24084-82 circuit boards
  • Microprocessor-based design
  • Monitors pressure, roll-out and limit switches
  • Controls gas valve, inducer draft motor, circulating blower and hot surface ignitor
  • Reverse polarity detection
  • Twinning compatible with other ICM288 control boards
  • Diagnostic LEDs for testing/troubleshooting

SPECIFICATIONS:

Voltage Range: Line 98-132 VAC @ 60HZ
Ignitor: 5A, 120 VAC
Cool Blower: 10A, 2HP, 240 VAC
Heat: 5A, 1/2 HP, 250 VAC
Inducer Blower: 4A, 120 VAC
Gas Valve: 1A, 24 VAC
Humidifier Motor: 0.5A, 24 VAC
Electronic Air Cleaner: 1A, 120 VAC
Products specifications
Attribute nameAttribute value
ConditionNew
