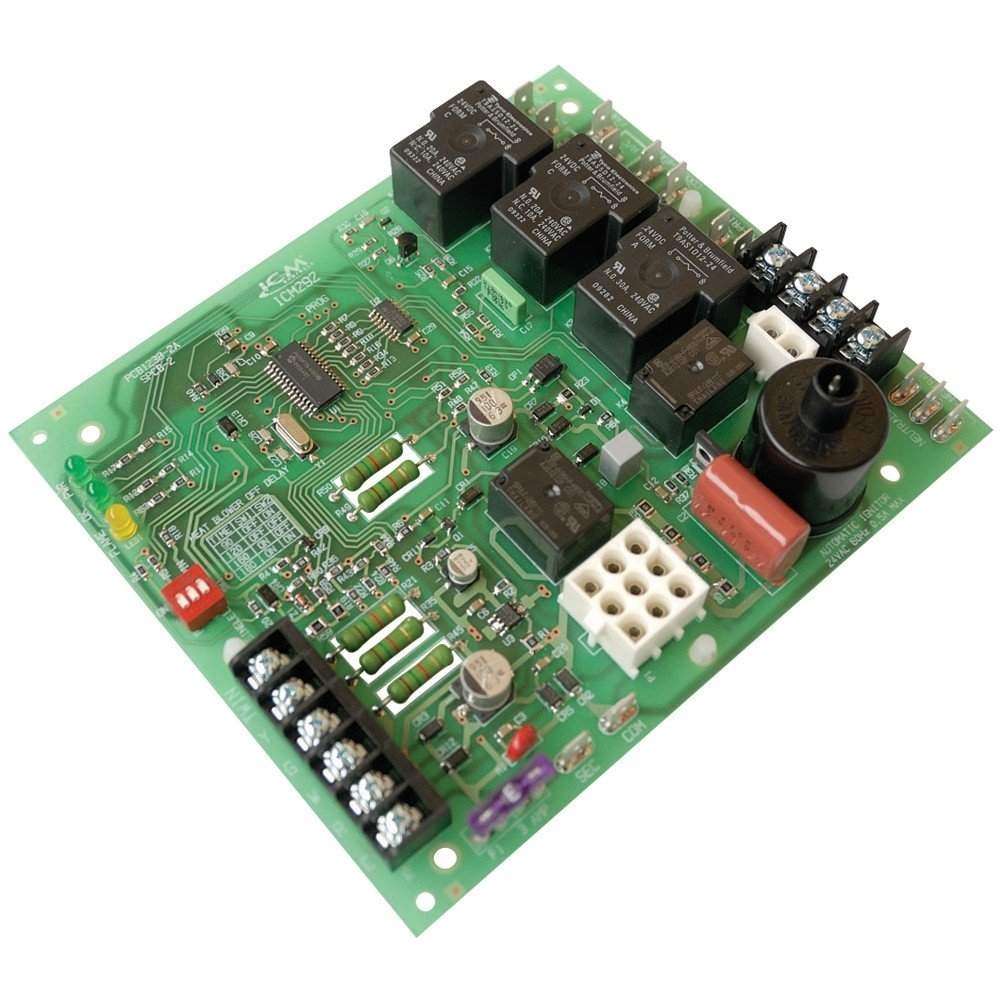

ICM Furnace Control For ICM292

ICM Furnace Control For ICM292
Fast Delivery Service Graphic
Availability: Out of stock
Current Stocking Number: ICM292~a
Part Number: ICM292
Manufacturer: ICM Controls
Be the first to review this product
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$185.06
$116.27
Prop 65 Warning

Furnace Control Control - replacement for Rheem 62-24140-04 control boards

DETAILS:

* Low cost form, fit and functional replacement for Rheem: 62-24140-04 * Direct Spark Ignition (DSI) control * Microprocessor-based * Controls inducer motors, air cleaner (if equipped), humidifier (if equipped), spark ignitor, and the gas valve * Monitors timing, trial for ignition, system switches, flame sensing, and lockout * 100-percent lockout safety feature * Compatible with LP or Natural gas * LED indication for status and fault codes to aid in troubleshooting

SPECIFICATIONS:

Control Voltage: 24 VAC (18-30 VAC), 60Hz
Line Voltage: 115 VAC, 60Hz
Timing:
- Pre-Purge: 30 seconds
- Trial for Ignition: 7 seconds
- Retries: Two groups of two, 30 second delay within the group, and 3 minute delay between groups
- Lockout: 1-hour
- Post-Purge: 90, 120, 160 and 180 seconds
Inputs:
- Power: 24 VAC and COM
- Thermostat Interface: R,W, Y, and G
- System Switches: Vent pressure and limit switches (main and over-temperature switches in series)
- Flame Sensing
- Heat Blower OFF Delay (miniature slide switch set)
Outputs:
- Spark
- Gas Valve: GV
- Inducer Draft Motor: IDM
- Blower Motor: FAN, COOL and HEAT speeds
- Electric air Cleaner: EAC
- Humidifier Relay: HUM
- Heat/Cool Relay: H/C
LED Indicators:
- Power, Green LED: PWR
- Status, Green LED: OK
- Flame Status, Yellow LED: FLAME

Furnace Control Control - replacement for Rheem 62-24140-04 control boards

DETAILS:

* Low cost form, fit and functional replacement for Rheem: 62-24140-04 * Direct Spark Ignition (DSI) control * Microprocessor-based * Controls inducer motors, air cleaner (if equipped), humidifier (if equipped), spark ignitor, and the gas valve * Monitors timing, trial for ignition, system switches, flame sensing, and lockout * 100-percent lockout safety feature * Compatible with LP or Natural gas * LED indication for status and fault codes to aid in troubleshooting

SPECIFICATIONS:

Control Voltage: 24 VAC (18-30 VAC), 60Hz
Line Voltage: 115 VAC, 60Hz
Timing:
- Pre-Purge: 30 seconds
- Trial for Ignition: 7 seconds
- Retries: Two groups of two, 30 second delay within the group, and 3 minute delay between groups
- Lockout: 1-hour
- Post-Purge: 90, 120, 160 and 180 seconds
Inputs:
- Power: 24 VAC and COM
- Thermostat Interface: R,W, Y, and G
- System Switches: Vent pressure and limit switches (main and over-temperature switches in series)
- Flame Sensing
- Heat Blower OFF Delay (miniature slide switch set)
Outputs:
- Spark
- Gas Valve: GV
- Inducer Draft Motor: IDM
- Blower Motor: FAN, COOL and HEAT speeds
- Electric air Cleaner: EAC
- Humidifier Relay: HUM
- Heat/Cool Relay: H/C
LED Indicators:
- Power, Green LED: PWR
- Status, Green LED: OK
- Flame Status, Yellow LED: FLAME
Products specifications
Attribute nameAttribute value
ConditionNew
