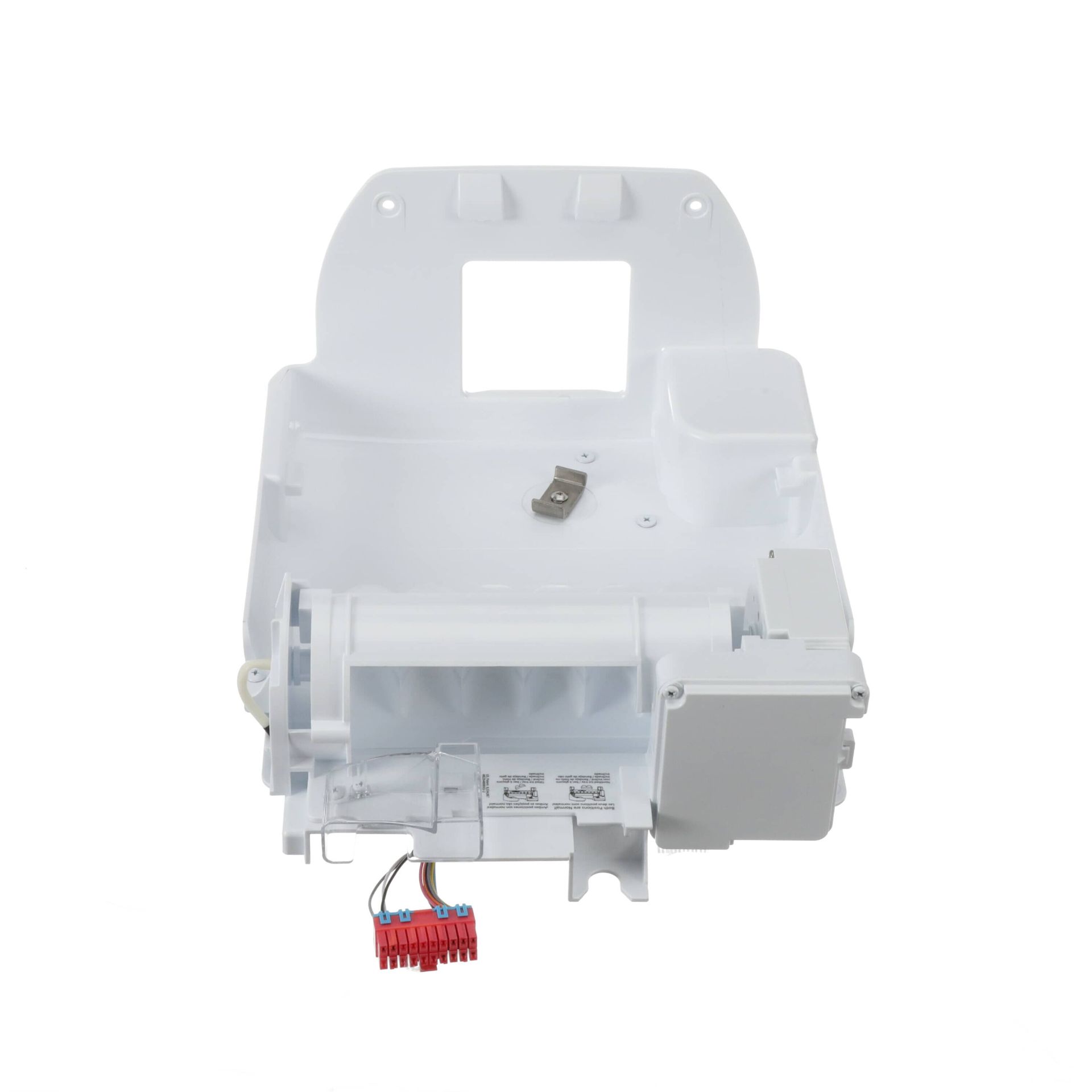

Part ACZ74390702 Ice Maker & Auger Motor Assembly

Purpose

Produces ice and drives the dispensing auger mechanism.

Details

The ACZ74390702 is a comprehensive genuine OEM assembly that combines the ice-making unit with the auger motor. This integrated system is responsible for freezing water into ice cubes and then using a motorized push mechanism to move that ice through the dispenser funnel. Because it houses both the electrical ice maker and the mechanical auger drive, it is a critical component for full dispenser functionality. Common symptoms of failure include the ice maker failing to cycle, the dispenser motor humming without moving ice, or internal jams caused by a cracked motor housing or stripped drive gears. Replacing the entire assembly ensures the motor and ice tray work in perfect synchronization to provide a consistent flow of ice.

Included Items

Ice maker unit, auger motor, and mounting bracket; Required tools: Phillips screwdriver.

Compatible Brands

LG, Kenmore

Replaces

AP7177521

Highlights

• Genuine OEM part
• Application: Refrigerator Door/Freezer Dispenser System
• Purpose: Integrated ice production and mechanical dispensing
• Dimensions: 15.00" x 11.00" x 3.00" (Box Dimensions)
• Installation difficulty: Moderate

Safety Note

Always disconnect power before servicing. Follow model-specific diagrams and safety instructions for installation.
