Part 6931EL3001F High-Limit Thermostat
Purpose
Shuts off dryer heating element when internal temperature becomes excessive.
Details
This genuine OEM high-limit thermostat is used in select LG and Kenmore dryers. It mounts on or near the heating element housing and monitors the temperature of the air exiting the drum. If the internal temperature exceeds safe limits—often caused by blocked vents or a failed fan—the thermostat will open the heating circuit to prevent overheating. Common symptoms of a failed thermostat include the dryer spinning without heating, very long drying times, or premature cycle shut-off. Replacing this part restores safe operation and proper heating response.
Included Items

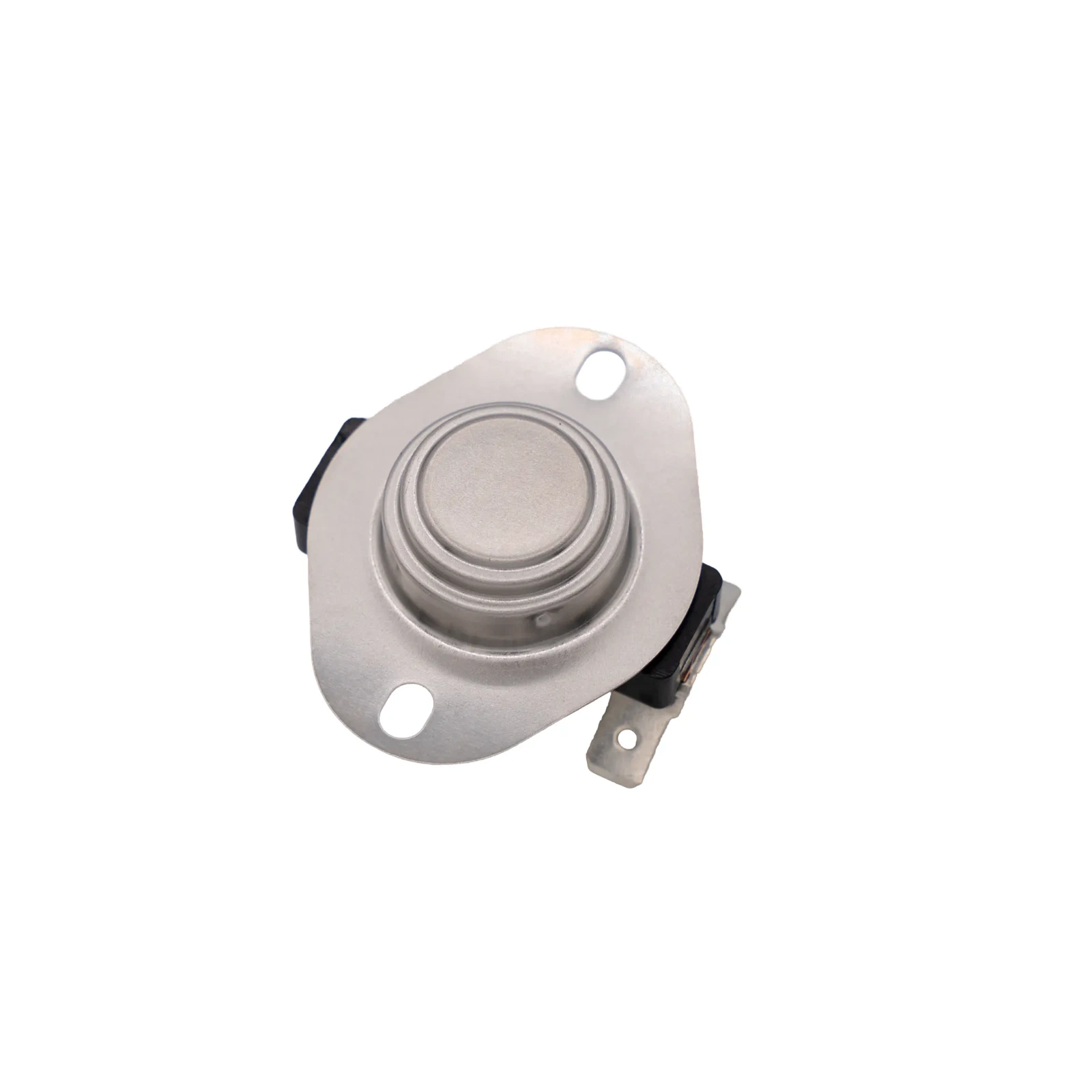

One metal high-limit thermostat assembly with three terminal connectors. Mounting screws or clips should be reused unless otherwise supplied.
Compatible Brands
LG, Kenmore (select dryer models)
Replaces
1377779; AP5072172; AH3530482; EA3530482
Highlights
- Genuine OEM part
- Application: Dryer safety heating system
- Purpose: Prevents overheating by cutting heating circuit
- Installation difficulty: Moderate (requires access to heating assembly and ventilation clearance)
Safety Note
Always disconnect power to the dryer and unplug the unit before servicing. Clean the lint screen and ensure the exhaust vent is clear before installing to avoid immediate reuse failure.
