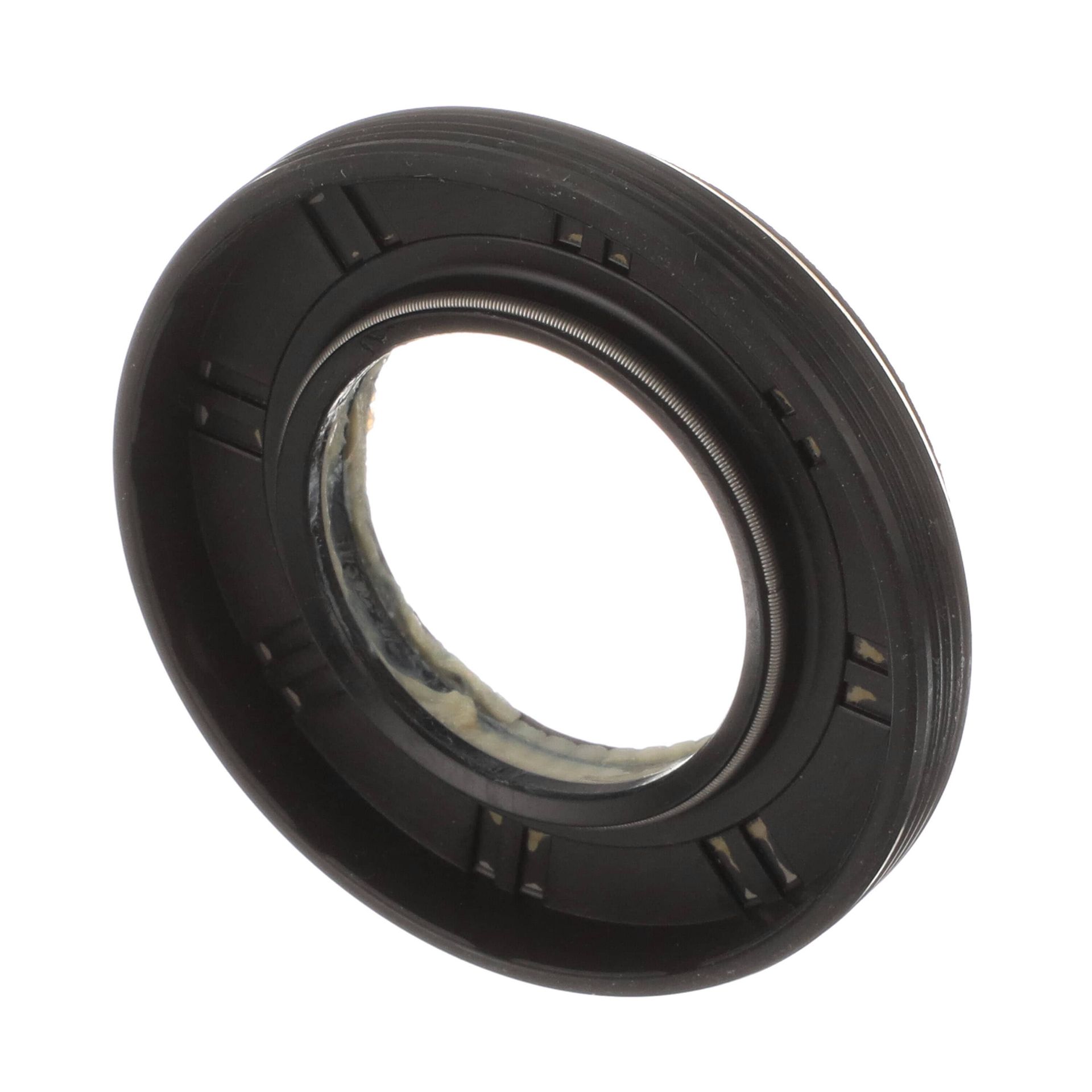

Part 4036ER2003A Washer Tub Seal
Purpose
Prevents water from leaking out of the tub and into the bearings.
Details
The 4036ER2003A is a genuine OEM water seal (also known as a shaft seal) designed for LG front-load washing machines and washer-dryer combinations. This rubber seal is the critical line of defense between the water-filled wash tub and the metal ball bearings (typically parts 4280EN4001A and 4280EN4001B). It is press-fitted into the center of the outer tub where the drive shaft passes through. If this seal perishes or becomes brittle, water will bypass the rubber lip and wash the grease out of the bearings, leading to rapid corrosion and the "jet engine" roaring sound during the spin cycle. Because this seal usually fails before the bearings do, it is essential to replace it every time the bearings are changed to prevent immediate repeat failure.
Included Items
One rubber tub seal; installation requires high-temperature waterproof grease (often sold separately) to lubricate the seal lip.
Compatible Brands
LG, Kenmore / Sears
Replaces
4036ER4001B, 1267489, AH3522301, EA3522301, PS3522301
Highlights
- Genuine OEM part
- Application: Washer Outer Tub / Drive Shaft
- Purpose: Watertight barrier protecting the bearing assembly
- Dimensions: Approximately 2.6 inches outer diameter
- Installation difficulty: Hard
Safety Note
Always disconnect power and water before servicing. This repair involves a complete teardown of the washer tub and drum. Ensure the shaft is clean and free of pitting before installing the new seal.
