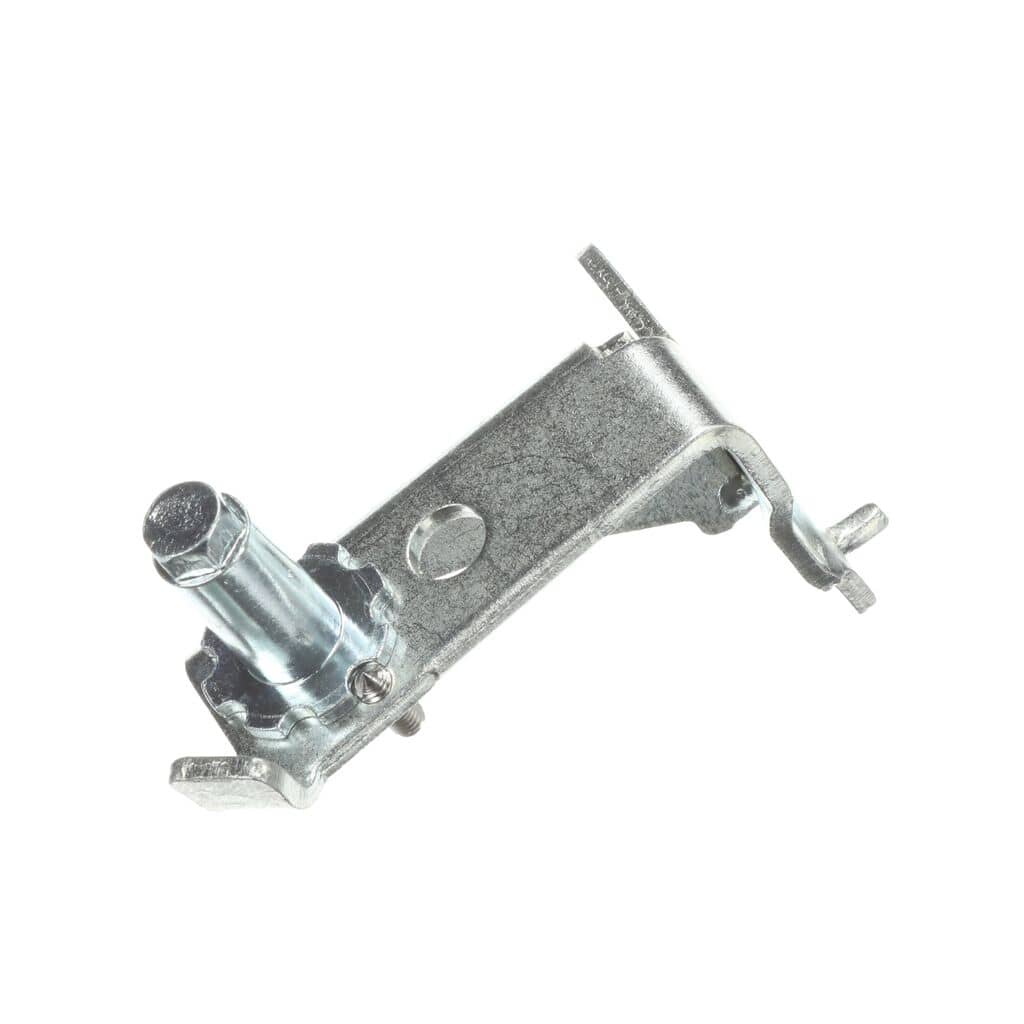

Part 5304532613 Bottom Hinge Assembly (Right)
Purpose
Supports the lower right pivot of the refrigerator door.
Details
The 5304532613 is a genuine OEM lower right-side hinge assembly for Frigidaire and Electrolux refrigerators. This heavy-duty metal bracket serves as the foundational pivot point for the refrigerator door, bearing the mechanical load of the door and its contents. It ensures the door remains level and plumb, which is essential for maintaining a tight magnetic seal against the cabinet. Common symptoms of failure include a sagging door that scrapes the bottom frame, difficulty closing the door without lifting it, or visible rust and metal fatigue at the pivot pin. Replacing this hinge restores smooth door swing and prevents air leaks that cause energy waste and food spoilage.
Included Items
One right-side bottom hinge assembly with pre-installed hinge pin; reuse original mounting bolts (3/8" socket usually required).
Compatible Brands
Frigidaire, Electrolux, Crosley, Kenmore
Replaces
5304525964, AP7174620, PS16658931, EAP16658931
Highlights
- Genuine OEM part
- Application: Refrigerator Bottom Door Support
- Purpose: Pivot point for right-side door rotation
- Orientation: Right Side Only
- Installation difficulty: Moderate
Safety Note
Always disconnect power before servicing. Follow model-specific diagrams and safety instructions for installation. Use a helper to hold the door or remove the door entirely before replacing the bottom hinge.
