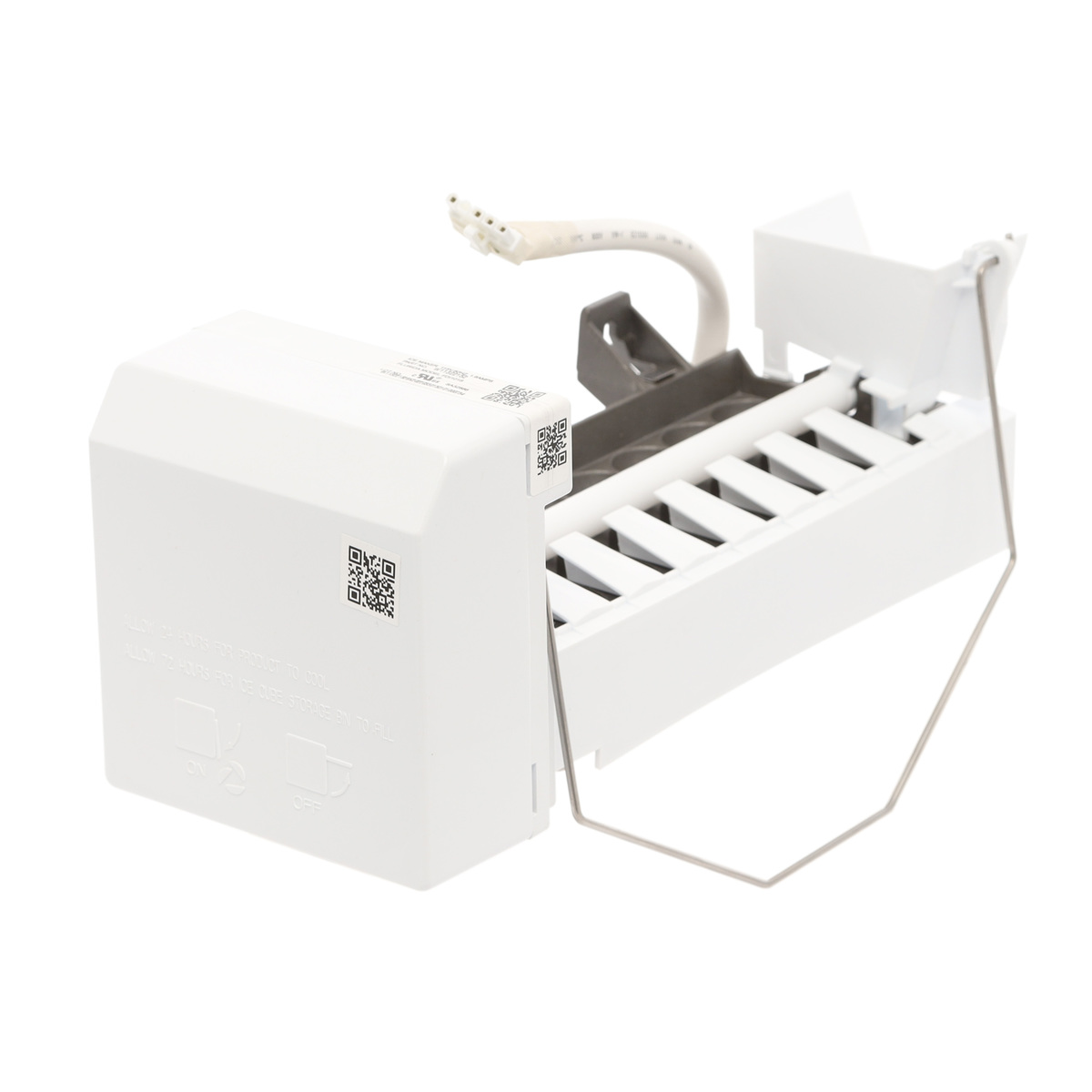

Part W11692144 (Icemaker Assembly)
Purpose
Produces ice cubes in freezer compartment
Details
This genuine Whirlpool icemaker assembly is responsible for forming, filling, and ejecting ice cubes in compatible refrigerator models. It cycles water into the mold, freezes it, then harvests the ice for storage. When the icemaker fails, symptoms can include: no ice production, cube trays that stay filled with water, ice cubes that are malformed, or the unit failing to cycle. Replacing this part restores normal ice production and helps ensure clean, usable cubes.
Included Items
Icemaker assembly unit; includes built-in fill cup and electrical connector harness.
Compatible Models
Compatible with various Whirlpool, KitchenAid, Amana, Jenn-Air refrigerator models. Confirm compatibility with your model’s number plate before purchase.
Replaces
Equivalent to part numbers like W11525253, among others used by Whirlpool family brands.
Highlights
- Genuine OEM Whirlpool part
- Application: Freezer/ice-making system
- Purpose: Form, freeze, harvest ice cubes
- Material: Molded plastic and metal mechanism with electric actuator
- Installation difficulty: Moderate (requires removal of freezer panel / access to wiring & water line)
Safety Note
Always disconnect power and shut off water supply before servicing. Follow installation instructions from your model’s manual. Ensure proper sealing to avoid leaks and frost buildup.
