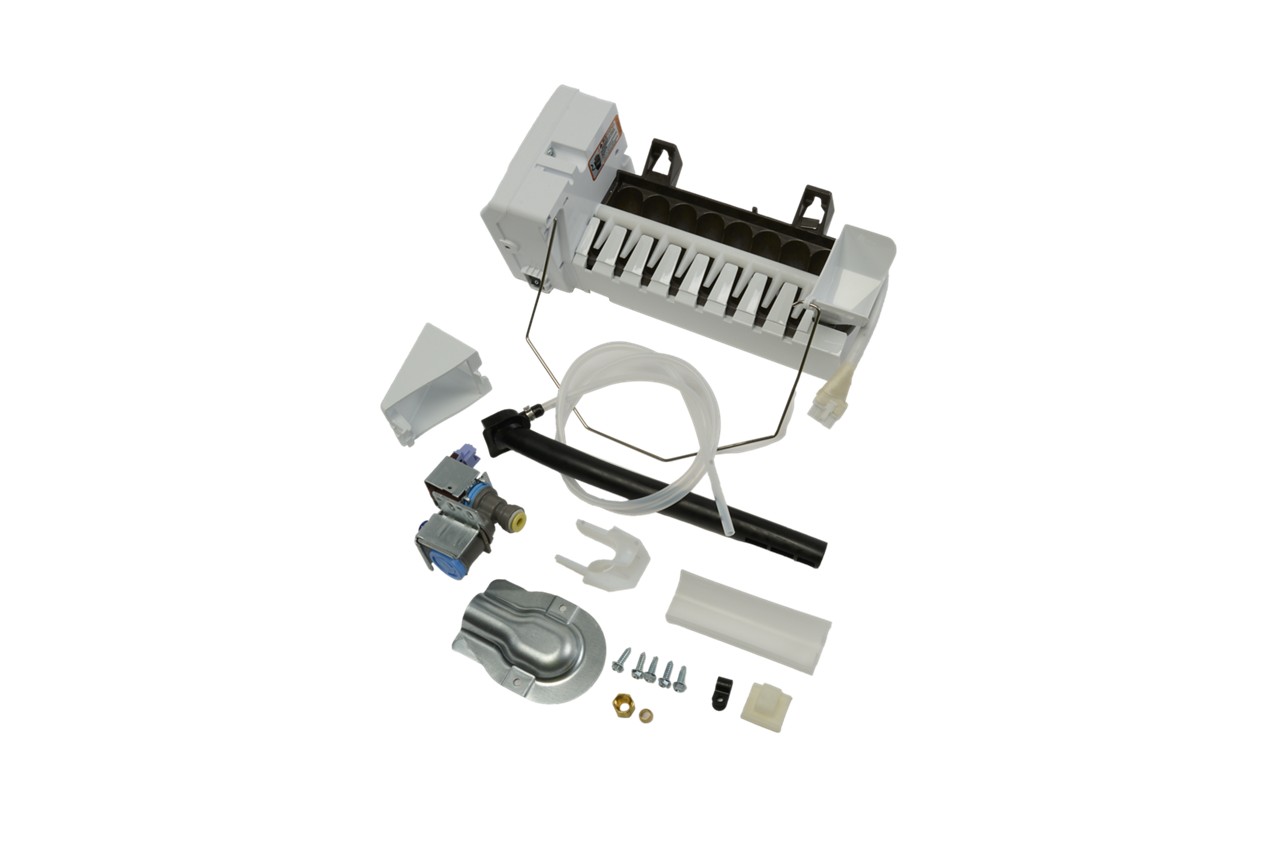

Part W11762633 Refrigerator Ice Maker Kit
Purpose
Ice production in refrigerator
Details
The W11762633 is the genuine OEM ice maker assembly used in select refrigerator models manufactured by Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, and related brands. It installs inside the freezer compartment or serves as an add-on kit for refrigerators without a built-in ice maker. The unit features a five-prong harness for power and control. Common symptoms of failure include no ice production, small or misshapen cubes, or leaking water in the freezer compartment. Replacing this assembly restores consistent ice output and reliable performance.
Included Items
One ice maker assembly with integrated wiring harness
Compatible Brands
Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Inglis, and Magic Chef (Whirlpool family brands)
Replaces
W11762633, WPW11762633, W11459724
Highlights
- Genuine OEM part
- Application: Refrigerator / freezer ice maker
- Purpose: Produces and ejects ice cubes automatically
- Includes: Molded tray, fill tube, motor module, and wiring harness
- Installation difficulty: Moderate
Safety Note
Always disconnect power before servicing. Avoid damaging evaporator tubing during removal or installation, and verify harness connection matches your model before operation.
Valid Models: (Press CTRL+F and enter your model number)
ABB1921BRB, ABB1921BRM, ABB1921BRW, ABB1924BRB, ABB1924BRM, ABB1924BRW, ABB2224BRB, ABB2224BRM, ABB2224BRW, KRBL102ESS, KRBL109ESS, KRBR102ESS, KRBR109ESS, MBB1957FEB, MBB1957FEE, MBB1957FEH, MBB1957FEW, MBL1957FEZ, MBR1957FEZ, WRB119WFBB, WRB119WFBM, WRB119WFBW, WRB329DFBB, WRB329DFBM, WRB329DFBW, WRB329LFBM, WRB329RFBM, WRF532SNHV, WRF532SNHW, WRF532SNHZ
Note: Compatibility varies by model; confirm with your model’s parts diagram.
