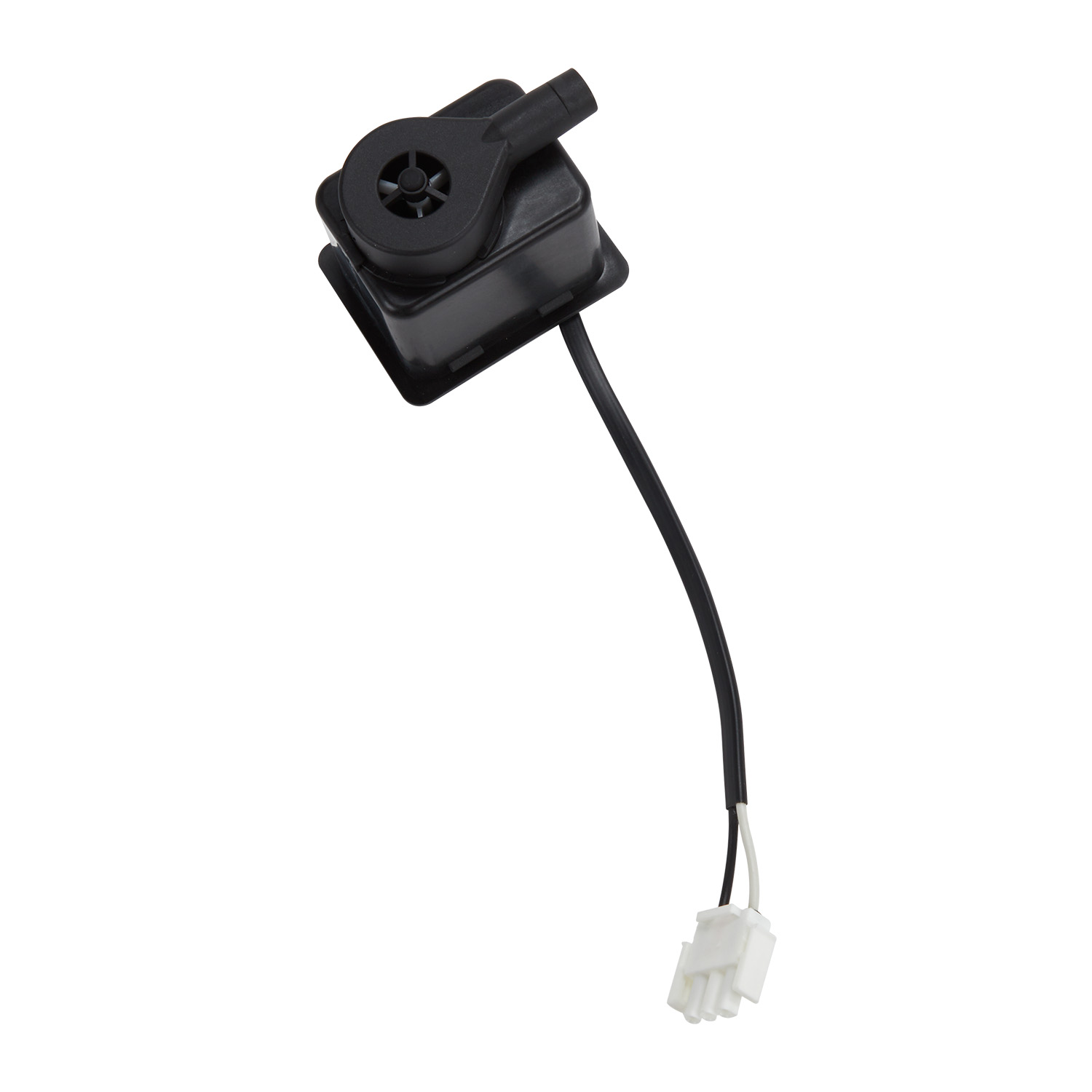

Part W11566405 Recirculating Pump
Purpose
Circulate water over ice plate
Details
The W11566405 is a genuine OEM recirculation pump used in Whirlpool, KitchenAid, Maytag, Jenn-Air and related ice machine / refrigerator systems. Its job is to circulate water over the evaporator (ice) plate so that ice forms properly before being cut into cubes. When this pump fails, you may see little or no water flow to the ice plate, reduced ice production, or no ice at all. Replacing the pump restores proper circulation and helps your ice making system function normally.
Included Items
One recirculation pump (housing + impeller + connector)
Compatible Brands
Whirlpool, KitchenAid, Maytag, Jenn-Air, Kenmore (Whirlpool-manufactured lines), Amana, Magic Chef, and related brands
Replaces
W11566405, 2313628, W11543890, WP2313628
Highlights
- Genuine OEM part
- Application: Ice machine / refrigerator recirculating pump
- Purpose: Moves water over freezing plate for ice formation
- Compact pump housing with connector and impeller
- Installation difficulty: Moderate
Safety Note
Always disconnect power and water before servicing. Be careful—avoid damaging surrounding components, wiring, or tubing. Confirm connector type and mounting design match your system before full installation.
Valid Models: (Search your appliance model number below)
GI15NFLTS4, GI15NFLTS0, GI15NDXTB0, GI15NDXTQ0, GI15NDXTS0, GI15NDXXB0, GI15NDXXQ0, KUIS18PNTB2, KUIS18PNTW0, KUIS15NRTT0, ZDIS150WSSD, ZDIS150ZSSD, GI15NDXTQ4, GI15NDXTS4, GI15NDXXS0, KUIS18NNTW0, JIM158XWRB1
Note: Compatibility varies by system; always confirm with your model’s parts diagram before ordering.
