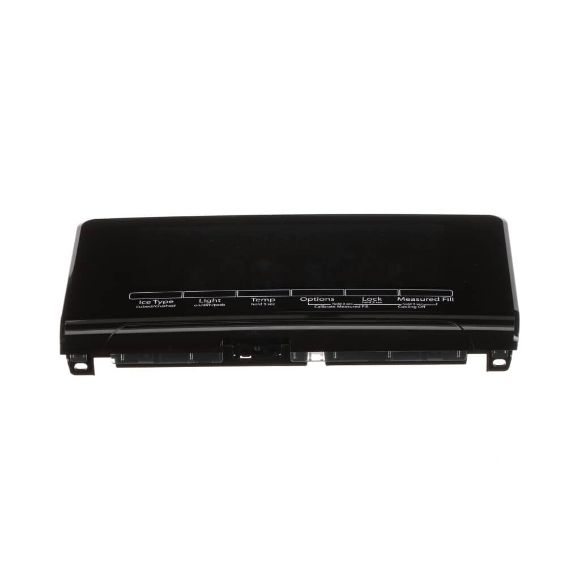

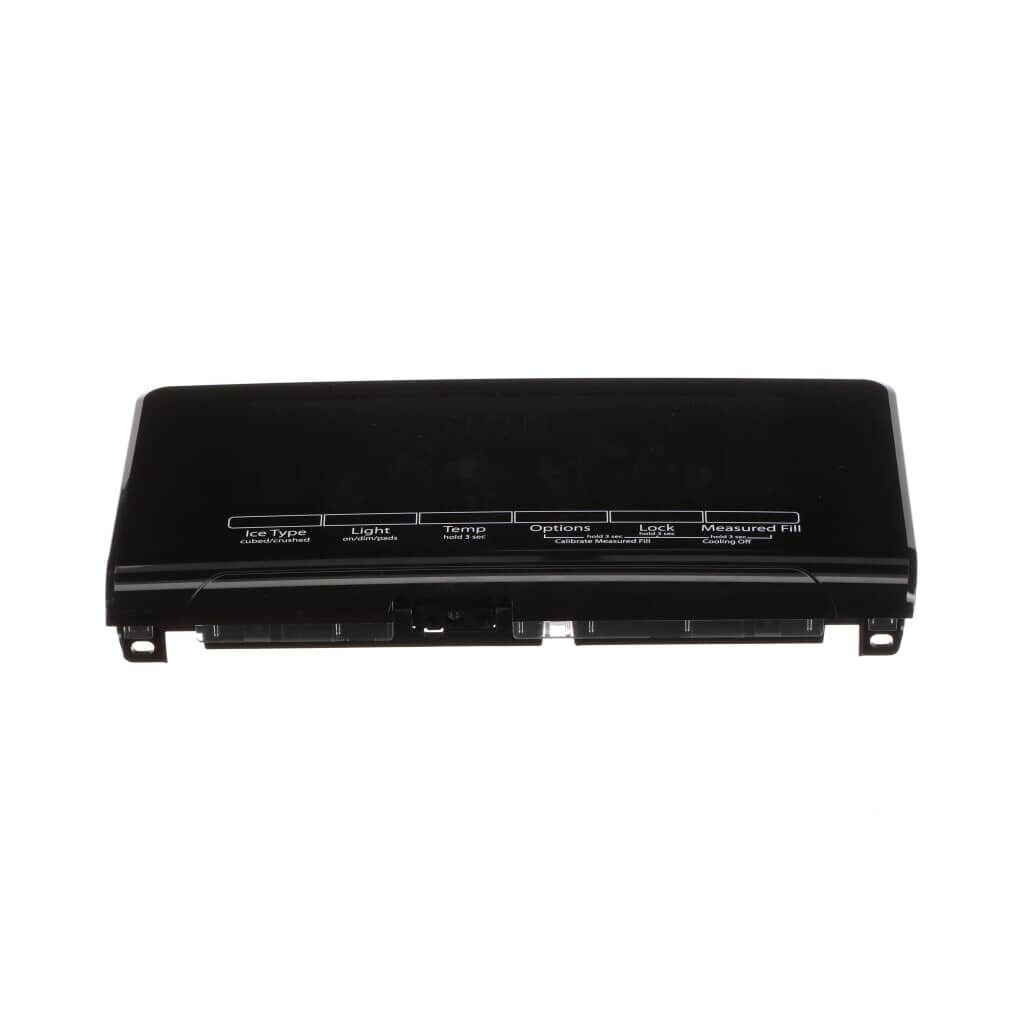

Part W11566894 Dispenser / Electronic Control Board

Purpose

Controls ice and water dispenser functions.

Details

This genuine OEM dispenser and electronic control board is designed for select Whirlpool side-by-side refrigerators. It manages the dispenser’s electrical functions, interpreting user input and controlling components such as the auger motor, water valve, and lights. A failed board can cause symptoms like an unresponsive dispenser, lights not functioning, or the refrigerator not responding to control panel inputs. Replacing this board restores proper communication between the dispenser and the refrigerator’s main control system.

Included Items

Dispenser control board assembly with bracket and wiring harness (as applicable by model).

Compatible Brands

Whirlpool, Maytag, KitchenAid (select models)

Replaces

W11384540

Highlights

• Genuine OEM part
• Application: Refrigerator dispenser and control system
• Purpose: Manages ice and water dispensing and user control interface
• Installation difficulty: Moderate

Safety Note

Always disconnect power before servicing. Follow model-specific diagrams for proper wiring connections and mounting locations.
