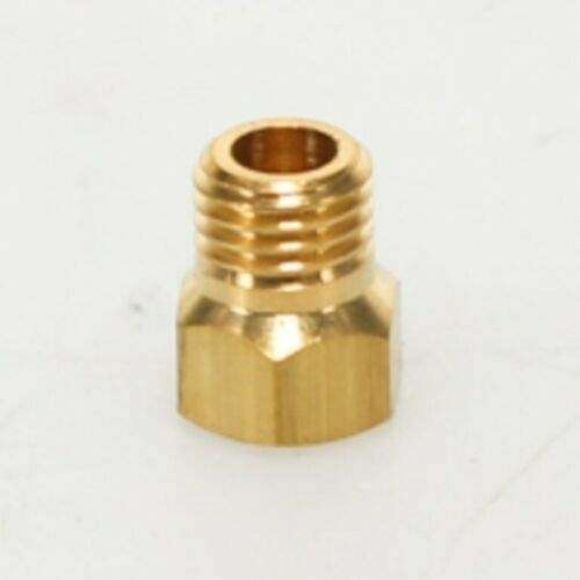

Part W11752198 Range Gas Surface Burner Orifice Spud
Purpose
Regulates the flow rate of natural gas to the cooktop surface burner.
Details
The gas surface burner orifice spud (specifically calibrated for Natural Gas configurations, often designated for right-rear or specific small-btu cooktop locations) dictates the precise fuel-to-air mixture necessary for a clean, clean-burning blue flame. It features a micro-drilled brass aperture designed to throttle incoming gas pressure down to the manufacturer's exact specifications before it enters the burner head assembly. Over time, spills, grease boilovers, or aggressive cleaning compounds can clog the pinpoint central aperture. Additionally, physical damage can occur if the soft brass threads are cross-threaded or if an uncalibrated pin or wire tool is shoved into the opening to clear a blockage, widening the hole. Common symptoms of a compromised or incorrect orifice spud include a weak or flickering yellow lazy flame, excessive soot production on cookware, a persistent gas odor, or an failure to ignite the burner head efficiently.
Included Items
Includes one genuine OEM brass surface burner orifice spud. A 7mm nut driver or socket is required to safely unthread the spud from the gas burner jet holder holder frame.
Compatible Brands
Whirlpool, JennAir, Maytag, KitchenAid, Amana, Kenmore
Replaces
4997141, PS17918302
Highlights
- Genuine OEM part
- Application: Range and cooktop surface gas burner distribution manifold
- Purpose: Hardened brass precision jet that controls volume of gas delivery for precise burner BTU generation
- Gas Type: Configured for Natural Gas applications
- Installation difficulty: Easy
Safety Note
Always shut off the gas supply and disconnect electrical power before servicing gas components. Check connections thoroughly for gas leaks using a certified leak-detection solution before resuming usage.
