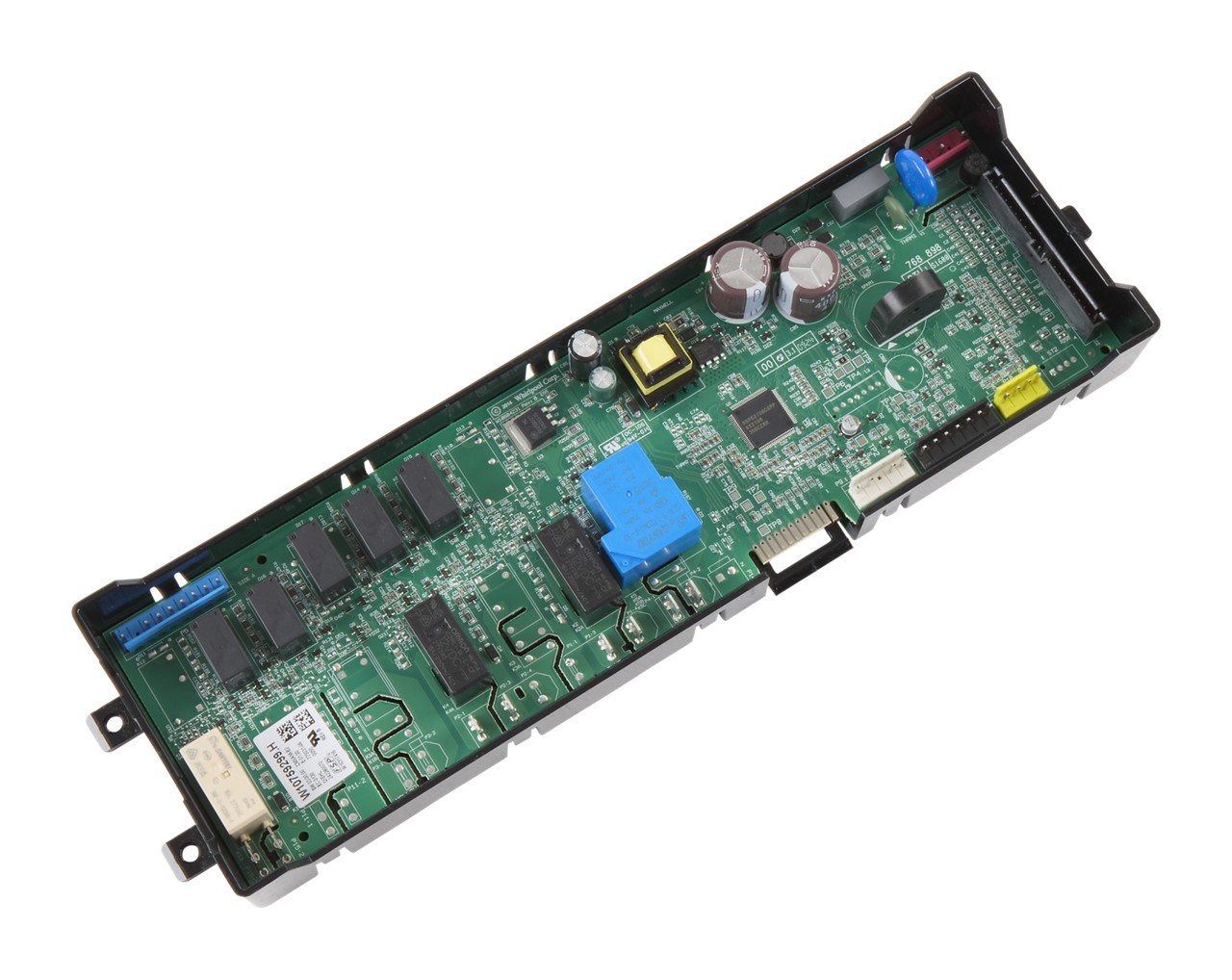

Part W11100513 Range Electronic Control Board
Purpose
Monitors oven temperature and manages heating elements.
Details
The W11100513 is the central electronic control module (CNTRL-ELEC) for high-end Whirlpool and KitchenAid slide-in ranges. This board acts as the primary logic center, regulating bake, broil, and convection cycles by processing signals from the oven temperature sensor. It is also responsible for driving the digital display and responding to user interface commands. Common symptoms of a faulty control board include an unresponsive touch display, erratic temperature swings, or the oven failing to heat despite receiving power. Because this part manages high-voltage components, a failure can often be traced to electrical surges or thermal fatigue. Installing this genuine OEM replacement restores precise cooking calibration and full timer functionality.
Included Items
1 Genuine OEM Electronic Control Board; Required tools: Phillips screwdriver, nut driver, and work gloves.
Compatible Brands
KitchenAid, Whirlpool, Jenn-Air, Maytag
Replaces
W10759299, 4842405, AP6245782, PS12074609, EAP12074609
Highlights
- Genuine OEM part
- Application: Oven/Range Control System
- Purpose: Regulates heating elements and display logic
- Dimensions: Approximately 15" x 7" x 2"
- Installation difficulty: Moderate
Safety Note
Always disconnect power before servicing. Follow model-specific diagrams and safety instructions for installation. Compatibility varies by model; confirm with your model's diagram.
