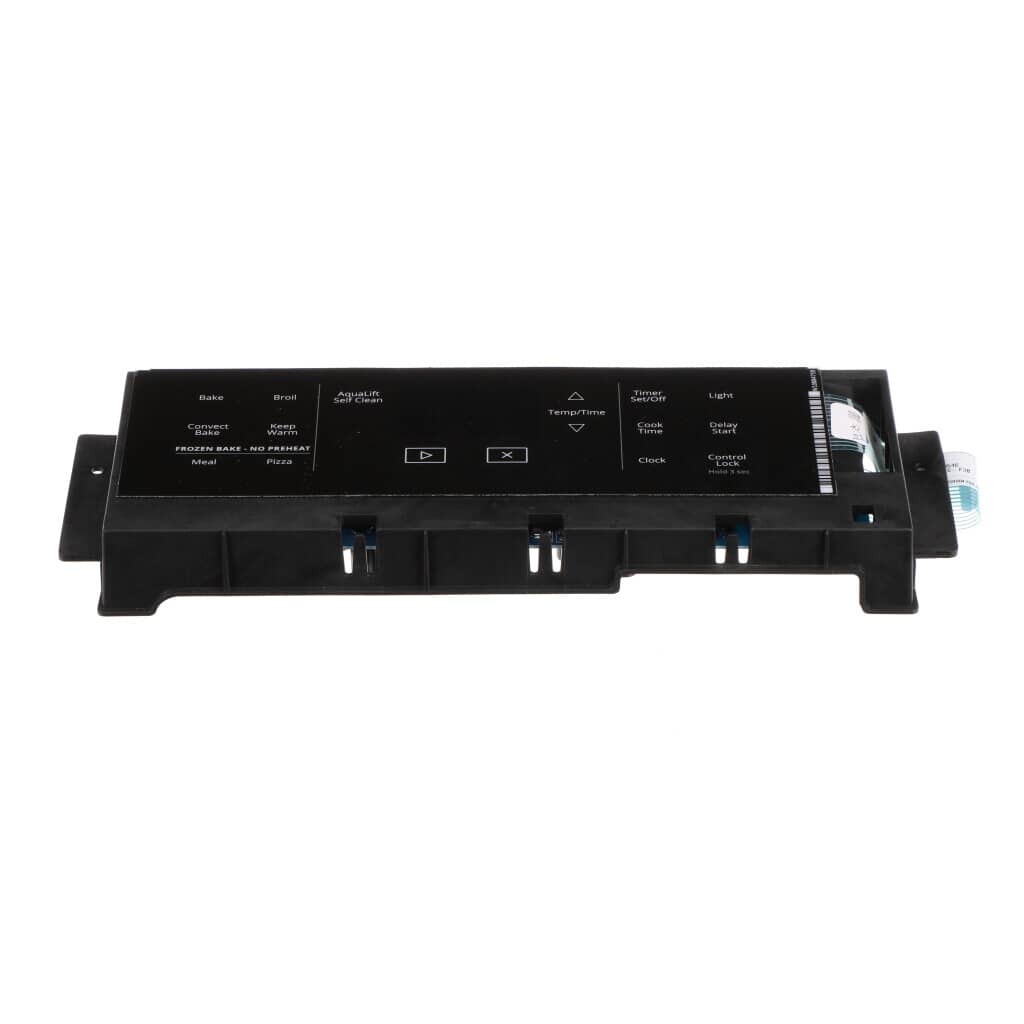

Part W11175139 Electronic Control Board

Purpose

Manages oven temperature and timing.

Details

This genuine OEM electronic control board is used in select gas and electric ranges manufactured by Whirlpool and affiliated brands. It receives input from oven sensors and user interface controls to regulate heating elements and maintain precise temperature levels during cooking cycles. Failure of this board can cause issues such as the oven not heating, inaccurate temperature readings, or an unresponsive display panel.

Included Items

Electronic control board module; mounting hardware only (reuse original wiring harnesses).

Compatible Brands

Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Kenmore (select models)

Replaces

W10885939, AP6285470

Highlights

• Genuine OEM part
• Application: Gas/Electric range oven system
• Purpose: Controls oven heating and display functions
• Installation difficulty: Moderate

Safety Note

Always disconnect power before servicing. Follow model-specific diagrams and safety instructions for installation.
