Part W10900067 Thermal Cut-Off / High-Limit Fuse Kit
Purpose
Protects dryer heater from overheating
Details
This is the genuine OEM thermal cut-off and high-limit fuse kit used in many Whirlpool-family electric dryers. The cut-off permanently opens if temperatures exceed safe limits; the high-limit thermostat regulates high temperature during operation. Typical failure signs include no heat, dryer shutting off mid-cycle, or overheating. Replacing this kit restores safe heat control and prevents damage to internal components.
Included Items

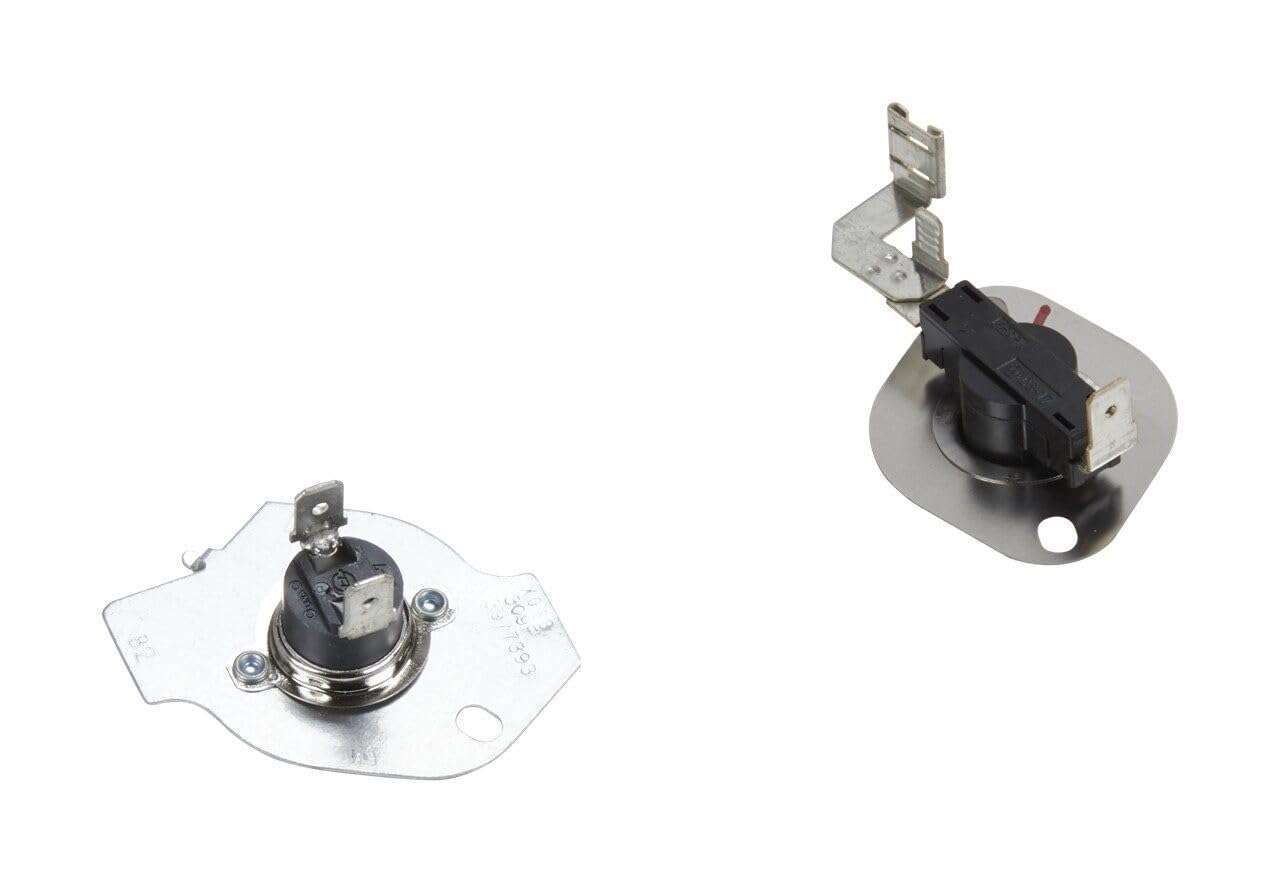

One thermal cut-off fuse and one high-limit thermostat.
Compatible Models
1MWED1750EM0; 7MMEDC300DW1; 7MMEDX655EW1; 7MWED1650EQ0; AED4516HW0; AED4516MW0; AED4516MW1; CDEW7011RW0; CDEW7110RW0; CED7006GW0; CED7011LW0; CED7011LW1; MED4005SW0; MED4500MW0; MED5030MW0; MED5430MW0; MED5430PBK0; MED6200KW0; MED6200KW1; MED6500MBK0; MED6500MW0; MEDB755DW0; MEDB755DW1; MEDB755DW2; MEDB766FW0; MEDC465HW0; MEDC465VWW1; MEDX6STBW0; MEDX6STBW1; RED4516FW0; RED4516FW1; VDEW6511RW0; VED6505GW0; WED4105SW0; WED4107SW0; WED4307SW0; WED4815EW1; WED4850HW0; WED4950HW0; WED4975EW0; WED49STBW0; WED49STBW1; WED500RLW0; WED5010LW0; WED5010LW1; WED5050LW0; WED5050LW1; WED6150PB0; WED6150PW0; WED7000DW2; WED7300DC1; WED7300DC2; WED7300DW0; WED7300DW1; WED7300DW2; YIED4771EW0; YIED4771EW1; YMED4005SW0; YMED4500MW0; YMED5030MW0; YMED5430MW0; YMED5430PBK0; YMED6200KW0; YMED6200KW1; YMED6500MBK0; YMED6500MW0; YMEDB755DW0; YMEDB755DW1; YMEDB755DW2; YMEDC465HW0; YMEDX6STBW0; YMEDX6STBW1; YNED4755EW1; YWED4105SW0; YWED4815EW2; YWED4850HW0; YWED49STBW0; YWED49STBW1; YWED5010LW0; YWED5010LW1; YWED5050LW0; YWED5050LW1; YWED6150PB0; YWED6150PW0; YWED7300DW2; ZDEW7115RB0; ZED7009GW0
Plus many more models — confirm with your dryer’s parts diagram before ordering.
Replaces
W10900067; 14210242; AP6036100; PS11769432
Highlights
- Genuine OEM part
- Application: Dryer heating protection / safety system
- Purpose: Prevents overheating and fire risk
- Includes both thermal cut-off and high-limit thermostat
- Installation difficulty: Moderate — requires access inside heater or blower housing
Safety Note
Always disconnect power before servicing. Never bypass safety fuses. Use correct temperature-rated parts and install in proper orientation per the service diagram.
