Part WP3387747
Purpose
Electric dryer heating element assembly for generating consistent drying temperature
Details

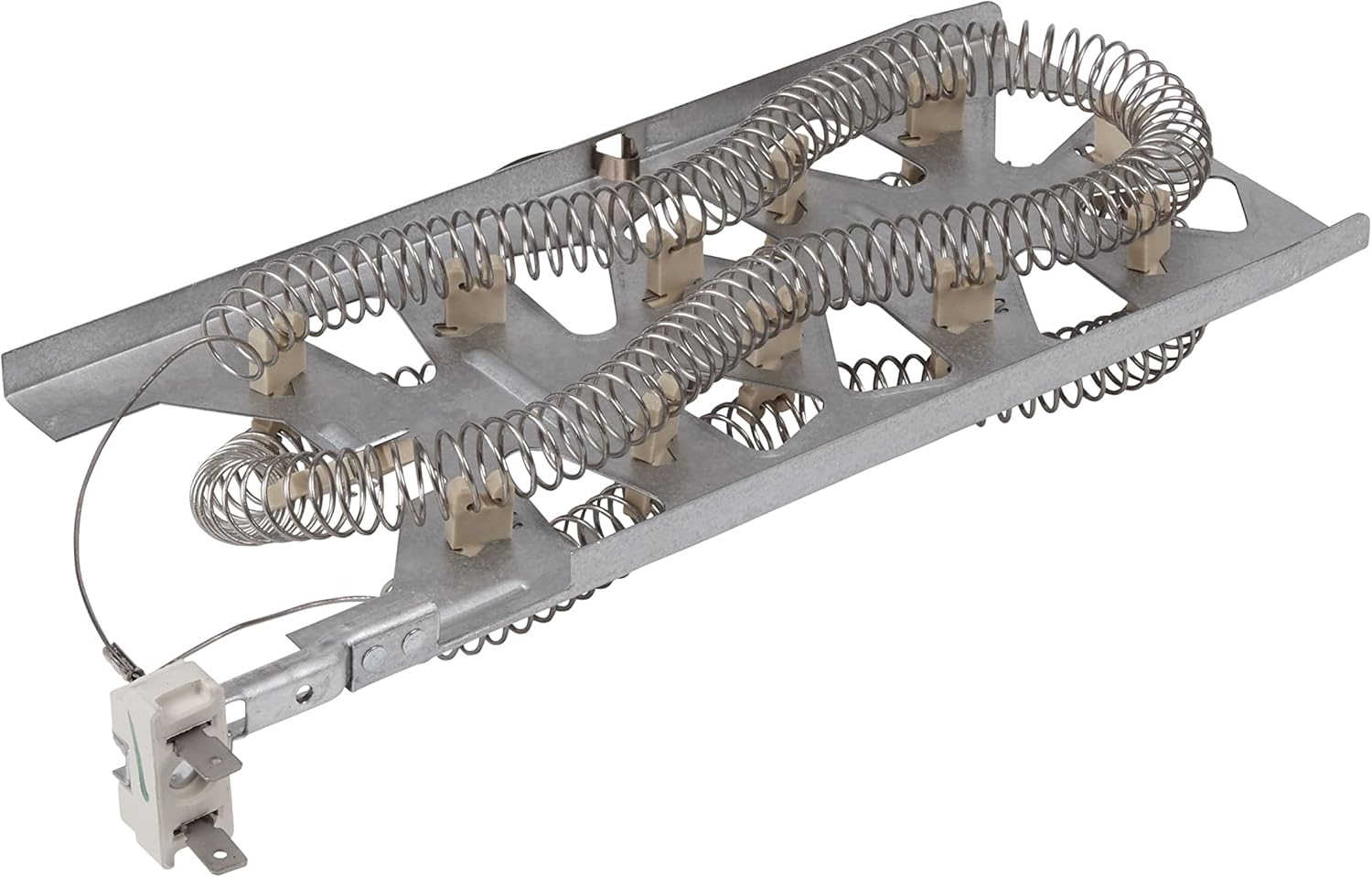

This genuine Whirlpool heating element assembly combines the coil, housing, and insulators into one compact module. Installed within the dryer’s airflow circuit, its 5 1/16-inch terminals connect to the electrical supply, allowing the element to warm as needed. When it fails—often evidenced by a visible break in the coil—the dryer may tumble without producing heat, halting the drying process.
Compatible Models
Fits many Whirlpool-based electric dryers and cross-brand models like Kenmore, Maytag, KitchenAid, Amana, Crosley, Inglis, Admiral, and others—compatibility varies by exact model; confirm with your dryer’s diagram.
Replaces
WP3387747, 3387747, W11045584, W11344457, 80003, AP6008281, AP2947033, PS11741416, WP3387747VP—confirm fit against your diagram.
Highlights
- OEM part—Whirlpool-certified quality and fit
- Application: electric dryer heating circuit
- Purpose: generates heat essential for drying clothes efficiently
- Specification: ~5 1/16″ terminals, rated at 5,400 W, 240 V
- Installation difficulty: Moderate (requires disconnecting power and accessing dryer interior)—follow safety guidance
Safety Note
Always disconnect power before servicing. If the dryer doesn’t heat, test the thermal fuse first—replacing the heating element alone may not resolve the issue.
