Part W10685193
Purpose

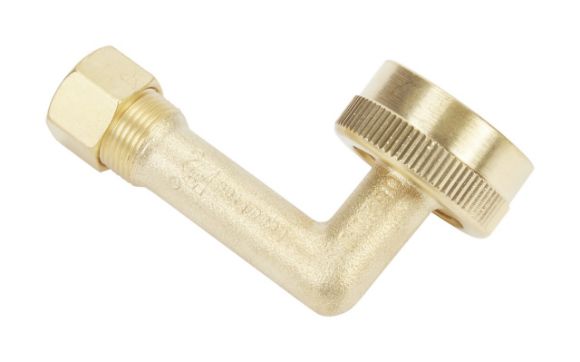

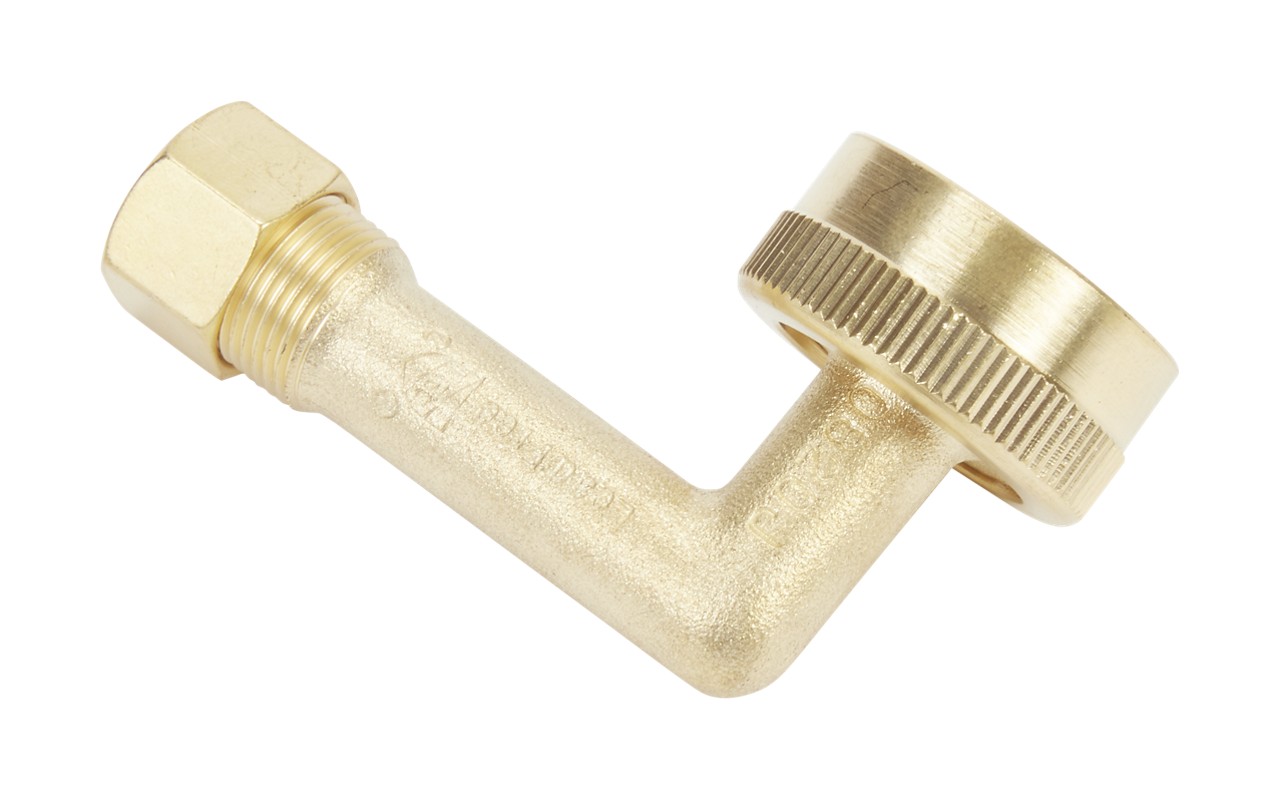

Dishwasher water inlet elbow fitting to connect the water supply line at a 90° angle
Details
This OEM brass elbow fitting delivers a secure, space-saving connection between a standard ¾″ hose thread and a ⅜″ copper water line. Its 90-degree swivel design supports compact installation and precise alignment—ideal when space is tight behind the dishwasher.
Compatible Models
Designed for Whirlpool dishwashers and compatible models from KitchenAid, Maytag, Jenn-Air, Amana, Inglis, and Magic Chef—always verify fit with your dishwasher’s parts diagram.
Replaces
Supersedes earlier part numbers W10574777, 3288910, PS9493732, W10273460 (and W10273460BU), W10574777BU, W10754429, and W10829954. Confirm compatibility against your model’s diagram.
Highlights
- OEM brass fitting—ensures durable, leak-resistant connection
- Application: water inlet for dishwasher fill circuit
- Purpose: enables proper water supply routing in tight installation spaces
- Specifications: ¾″ garden hose thread → ⅜″ compression copper tubing; 90° swivel elbow design
- Installation difficulty: Easy—requires basic tools such as an adjustable wrench and safe handling of water supply
Safety Note
Always shut off water supply and disconnect power before servicing. After installation, carefully check for leaks and ensure the copper line is properly seated and secured.
