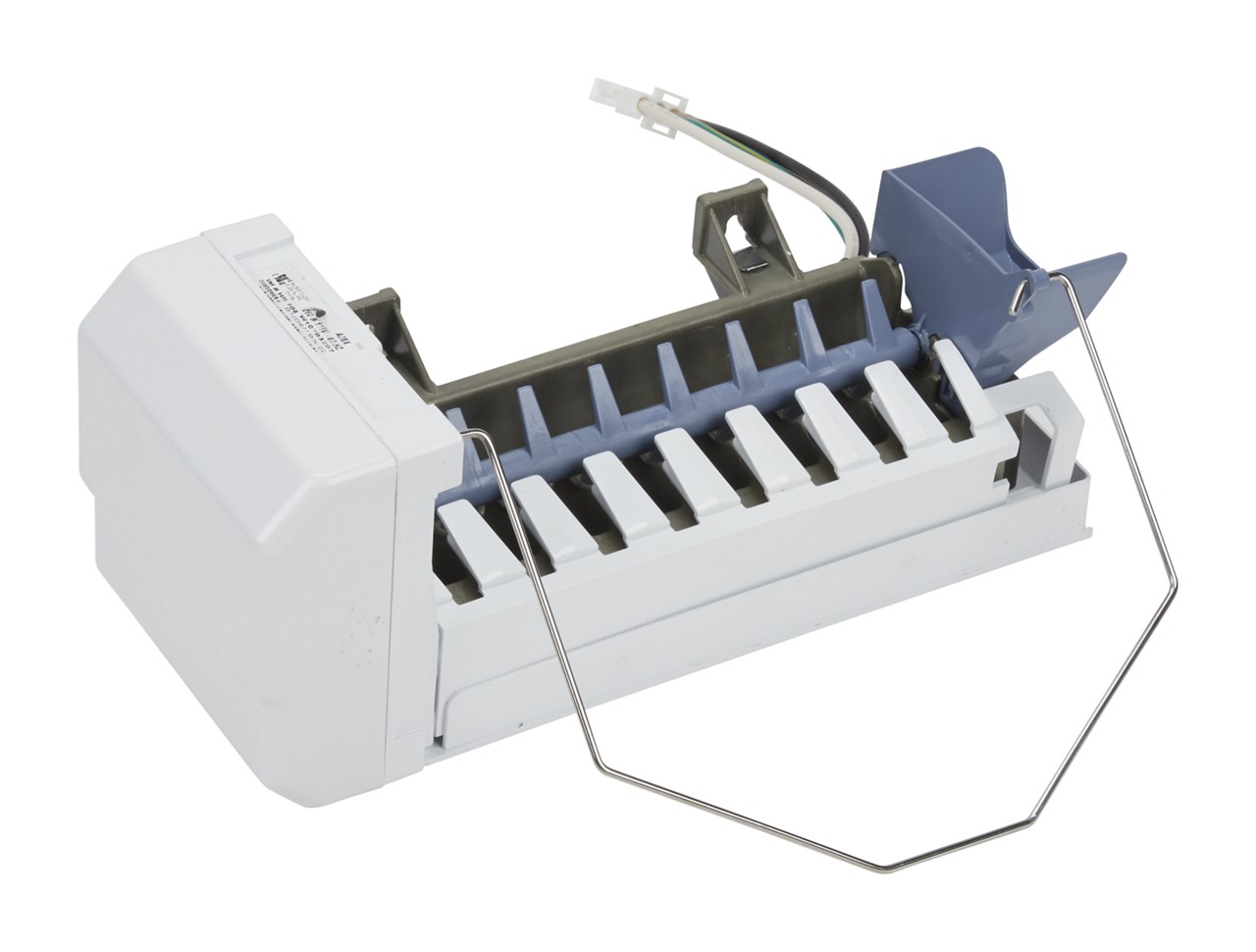

Part W10884390
Purpose
Refrigerator ice maker assembly for bottom-freezer models
Details
This OEM ice maker assembly receives water from the inlet valve, freezes it in the mold, then ejects the cubes into the ice bin and refills to repeat the cycle. It includes the ice mold, motorized control unit, bail arm, and wiring harness—ensuring complete functionality for seamless ice production.
Compatible Models
Compatible with various bottom-freezer refrigerators from Whirlpool and cross-brands such as Maytag, KitchenAid, Kenmore, Jenn-Air, Amana, Inglis, and Magic Chef—confirm compatibility using your refrigerator's parts diagram or model number lookup.
Replaces
Replaces legacy part numbers: W10377152, W10469286, W10793298, WPW10377152, WPW10469286, AP6030643, PS11765620. Always verify compatibility with your model’s diagram.
Highlights
- OEM ice maker—ensures tested durability and accurate fit
- Application: ice production and dispensing assembly in bottom-freezer units
- Purpose: restores automatic ice-making function when the original fails
- Includes ice mold, bail arm, control motor, and wiring harness
- Installation difficulty: Moderate—requires minor interior access and basic tools to install; model-specific instructions recommended
Safety Note
Always disconnect power and shut off the water supply before servicing. After installing the new ice maker, run a test cycle and check for proper ice production and water line connections.
