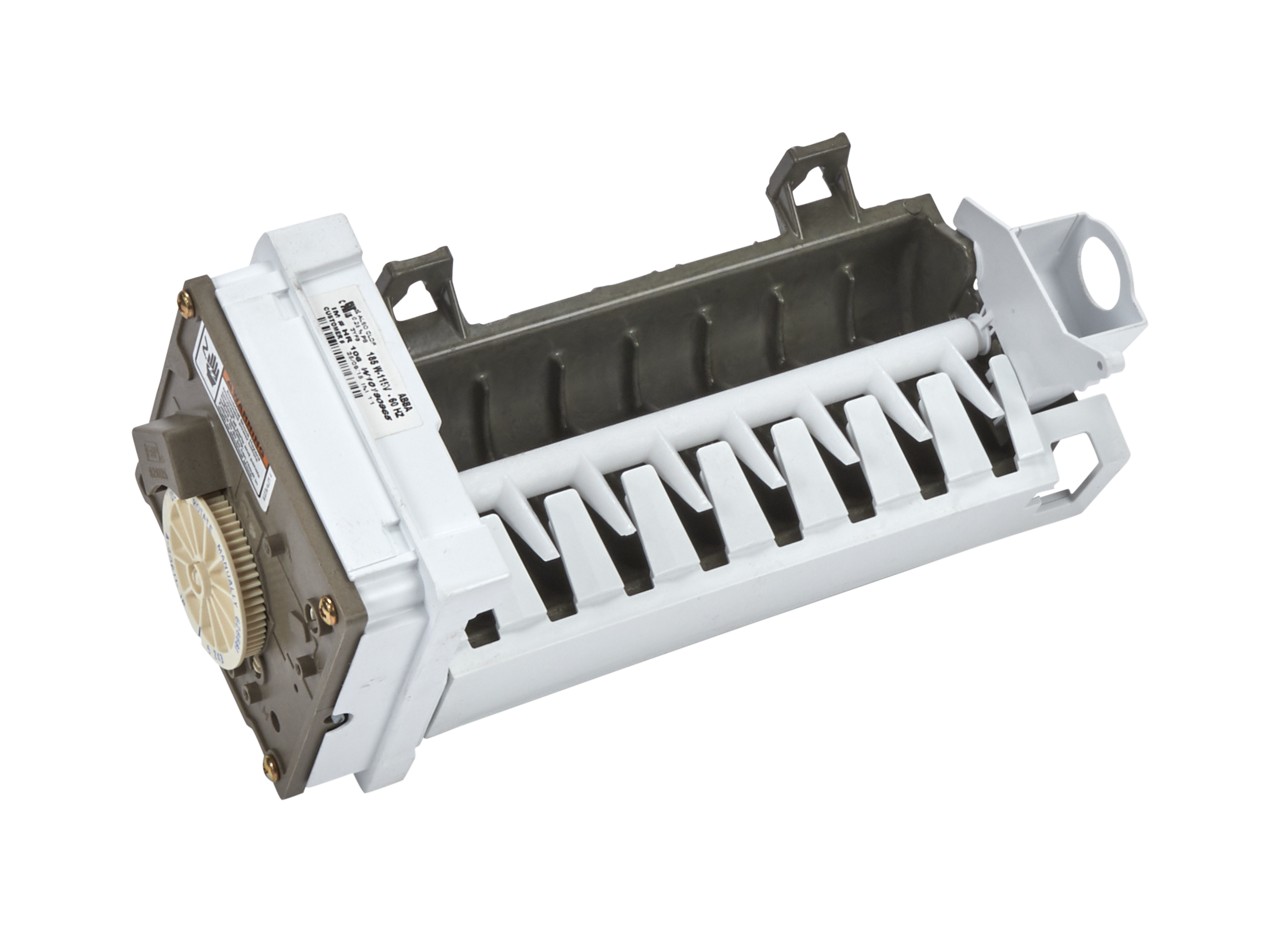

Part WPW10190965 Ice Maker Assembly
Purpose
Produces ice automatically within the freezer compartment.
Details
The WPW10190965 is a genuine OEM ice maker assembly designed for select refrigerators by Whirlpool and compatible brands. It receives water from the inlet valve, freezes it in the ice mold, ejects the cubes into the storage bin, and repeats the cycle until the bin fills. If your ice maker stops producing ice, ejects improperly, leaks, or fails to shut off when the bin is full, this part may need replacement. Installing the correct OEM ice maker restores reliable ice production and proper operation in ice-making refrigerators.
Included Items
One ice maker assembly (includes ice mold, motor and control module). Note: the shut-off bail arm, front cover and wiring harness may reuse from the original depending on model.
Compatible Brands
Whirlpool, Kenmore, Amana, Maytag.
Replaces
W10190965; W10122506; W10122507; W10122510; W10190966; W10190969; W10270037; W11381372; AP6016628; PS11749920.
Highlights
- Genuine OEM part
- Application: Refrigerator ice-making system
- Purpose: Automatically fills, freezes and ejects ice cubes
- Form: Complete ice maker module (motor + mold + control)
- Installation difficulty: Moderate (requires freezer compartment access, wiring and water connection)
Safety Note
Always disconnect power and shut off the water supply before servicing. Use care when handling wiring and water line. After installation, allow 24 hours for the ice maker to begin ice production and check for proper fill and ejection.
