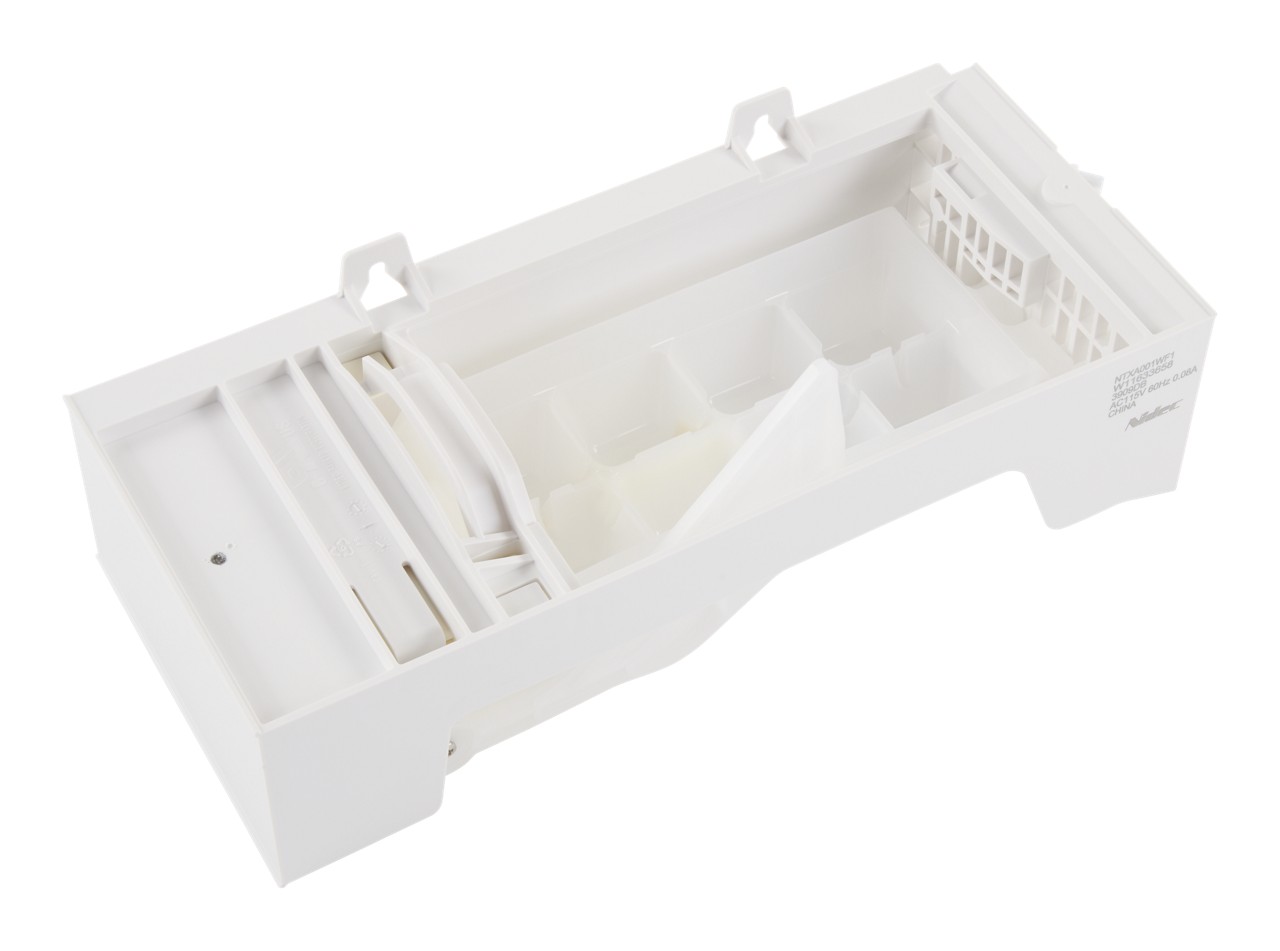

Part W11700250 Ice Maker Assembly

Purpose

Produces and harvests ice automatically

Details

This is the genuine OEM refrigerator ice maker assembly made by Whirlpool. It draws in water, freezes it into cubes, and then harvests and deposits the ice into the storage bin. Common symptoms of a failing ice maker include no ice production, ice stuck in the mold, or ice maker not engaging. Replacing this part restores consistent ice production and prevents overflow or clogs.

Included Items

One complete ice maker unit with motor, ice mold, and wiring harness.

Compatible Models

Whirlpool, Maytag, Amana, Kenmore refrigerators. Examples: WRS335SDHW06; ASI2175GRS07; ASI2575GRB08; WRS321SDHM08; WRS311SDHB10; WRS325SDHV10; WRS315SDHZ08; MRSF4036PB00; plus many other models. Compatibility varies by model; confirm with your model’s diagram.

Replaces

W11359448; W11546935; W11633658

Highlights

• Genuine OEM part
• Application: Refrigerator ice maker system
• Purpose: Automatic ice production with harvest cycle
• Includes motor and wiring harness for plug-and-play replacement
• Installation difficulty: Moderate — access freezer back panel and connect water line and wiring

Safety Note

Always disconnect power and shut off water supply before servicing. Follow model-specific diagrams and safety instructions when installing the ice maker.
