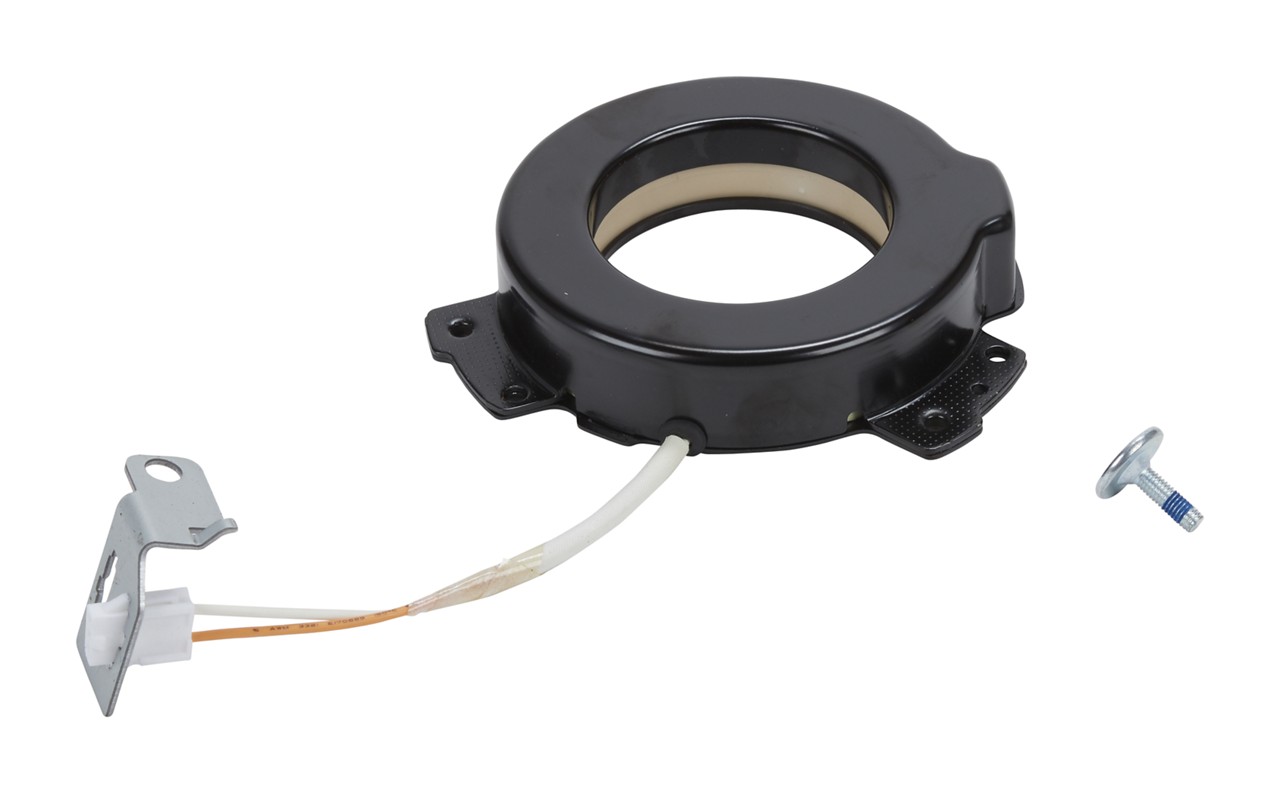

Part W10754448 Washer Clutch / Electromagnetic Shift Assembly
Purpose
Engages motion between rotor & transmission
Details
This is a genuine OEM electromagnetic clutch (shift) assembly used in many Whirlpool top-load direct drive washing machines. It works by energizing a coil to pull the rotor into engagement with the transmission, enabling the tub to spin or agitate. Failure typically results in the washer not spinning or agitating, slipping, or producing a loud grinding noise under load. Replacing the clutch restores proper mechanical linkage between motor and transmission and prevents further damage to the drive system.
Included Items
One clutch / shift assembly; mounting hardware; new stator bolt (often included).
Compatible Models
Whirlpool, Kenmore, Maytag top-load washers with direct drive rotor/stator systems. Models include those using the W10754448 clutch and replacements of W10447973, W10817398, W10905022, AP5956756, 3452770, PS10064562. Compatibility varies by model; confirm with your model’s diagram. :contentReference[oaicite:0]{index=0}
Replaces
W10754448; AP5956756; 3452770; PS10064562; W10447973; W10817398; W10905022
Highlights
- Genuine OEM part
- Application: Direct drive magnetic clutch for washer
- Purpose: Engages rotor to drive transmission for spin/agitation
- Installation includes new stator bolt; requires calibration after replacement
- Installation difficulty: Hard — involves motor access, rotor removal, and careful alignment
Safety Note
Always disconnect power before servicing. Use correct tools, follow torque specifications, and reference the model’s service manual to align and calibrate after installation.
