Part 4317943 Ice Maker Assembly
Purpose
Produces and dispenses ice in refrigerator
Details
This is the genuine OEM modular ice maker assembly used in many Whirlpool, Kenmore, and KitchenAid refrigerators. It fills the mold with water, freezes it, then harvests the ice into the storage bin. The design includes dual wiring harnesses for broad connector compatibility. Common symptoms of failure include no ice production, ice stuck in the mold, or irregular cycling. Replacing this assembly restores reliable ice-making performance.
Included Items

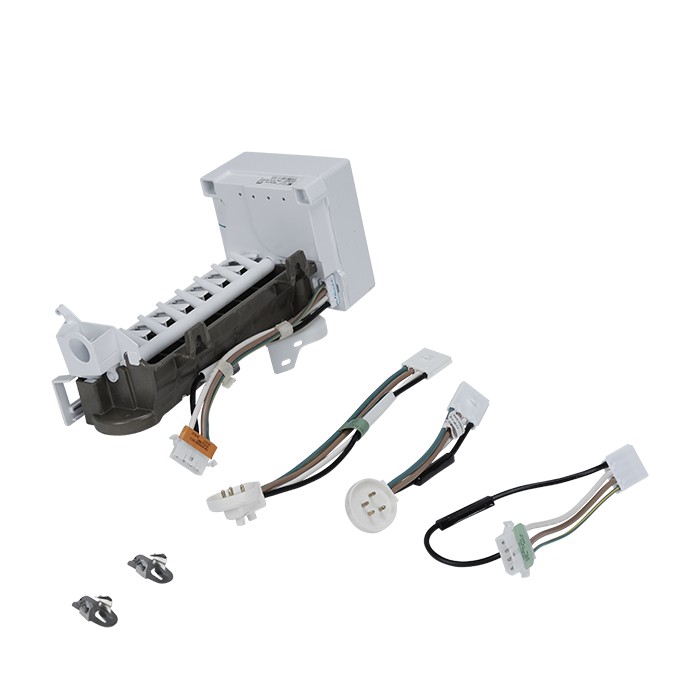

Complete ice maker unit with mold, ejector, wiring harnesses, and mounting hardware.
Compatible Models
Fits numerous Whirlpool, Kenmore, KitchenAid, Maytag, and other refrigerators. See full model list below. Always confirm with your refrigerator’s parts diagram before ordering.
Replaces
W10122496; W10281545; W10190952; 4210317; 4211173; 480616; 480617; 482014; 482015; 482016; 482017; 482018; 482019; 482020; 482394; 482433; 482990; 625601; 625603; 625610; 625611; 625622; 625625; 625653; 625656; 625660; 626002; 626201; 626237; 626366; 626461; 626489; 626608; 626636; 626640; M626687; 833701; 8114; 68972-4; 978552; 978553; 978556; 99689730; 4317943VP
Highlights
- Genuine OEM part
- Application: Refrigerator ice-making system
- Purpose: Freezes, harvests, and dispenses ice
- Includes dual harnesses for connector compatibility
- Installation difficulty: Moderate — requires freezer access and wiring connection
Safety Note
Always disconnect power and shut off water supply before servicing. Handle the ice maker and harness carefully, and ensure proper alignment of wiring and mounting brackets.
